Attributes that are declared in the DesignTracking block in PARTadmin appear in Inventor under iProperties on the Project and Status tab pages.

The following matrix shows the mapping between ENTERPRISE 3Dfindit keys and Inventor iProperties field names:

Design Tracking " block -> Key	iProperties -> Tabbed page Project -> field name	iProperties -> Tabbed page Status -> field name
Authority	Authority
Catalog Web Link	Web link
Cost Center	Cost center
Description	Description
Design Status Note Is set on the PDM side or possibly by ACTIVE_STATE from ENTERPRISE 3Dfindit	Design status
Language
Manufacturer	Supplier
PartNumber Note May need to be adjusted. In the standard ENTERPRISE 3Dfindit with ERP connection, the material attribute is called "MAT_NAME".	Part number	Part number
Project	Project
Standard Revision
Stock Number	Stock number	Stock number
User Status		Status
Vendor	Supplier

The following two illustrations show the Project and Status tab pages.

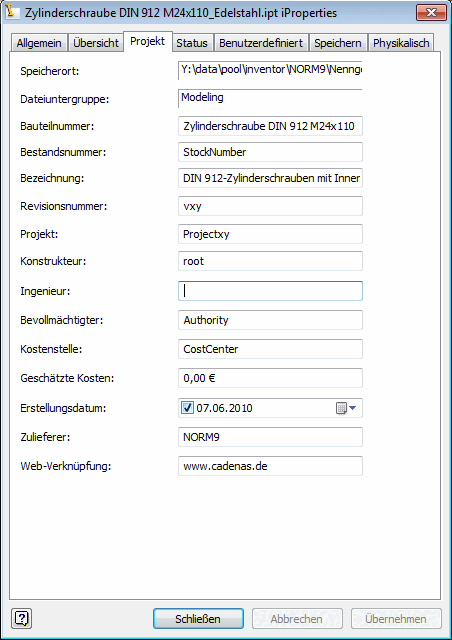

Part -> iProperties -> Tabbed page "Project"

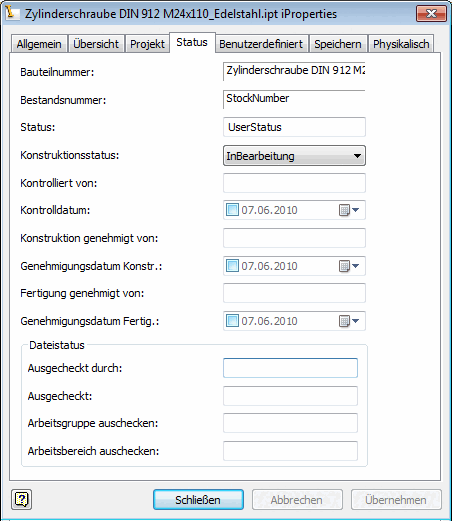

Part -> iProperties -> Tabbed page "Status"
