5.5.1.4. Register page "Active licens es"

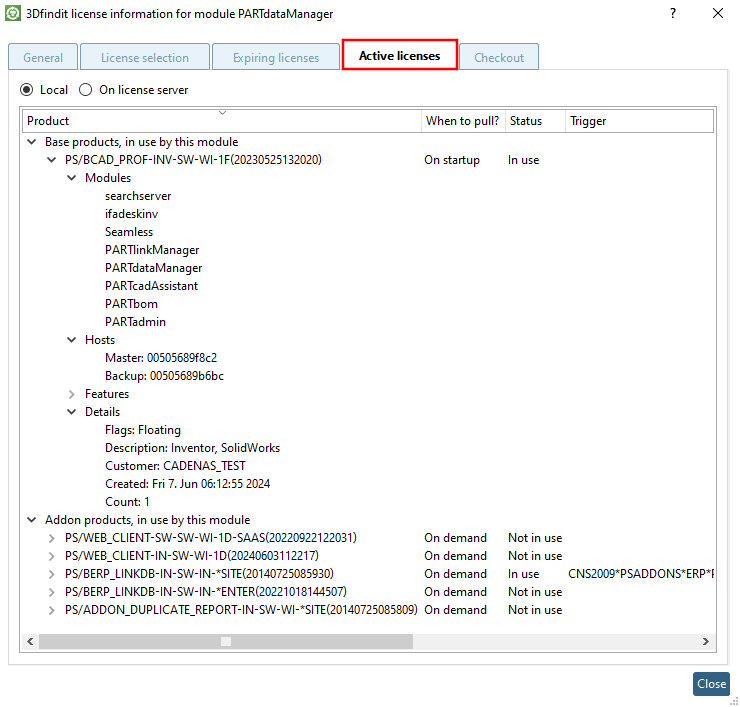

On the Active licenses tab page, you will find detailed information on all active licenses.

At first select one of these two options:

Local
The Nodelocked license products of the respective locale client are displayed.

On license server

The Floating license products are displayed with the additional information, by which computers these are currently used.

	Note
	This information may be interesting, when the user did not get a license at the moment because there were no free licenses available anymore.

	Note
	Only FLM licenses are displayed (no Dynamic Nodelocked).

There are two product groups:

Base products
Base products have to be reserved at the start of a program / an interface. (They are so to say the "base license".)
Only one base product can be reserved at the same time (at floating).
Addons
Addons can be reserved in addition to all modules. They don't have to be reserved at startup.

The When to occupy? [When to pull?] column shows whether the product is occupied at the start [On startup] or on demand [On demand].

The Status column shows whether the product is occupied [In use] or not occupied [Not in use].

The Trigger column shows which license key was the trigger for the product assignment.

Basic products [Base products] and add-ons [Addons]

Basic products [Base products] and add-ons [Addons] have the following sub-items:

Modules
All modules and interfaces are listed, which can be used with the respective license product.
Hosts
... shows the Mac address of the host

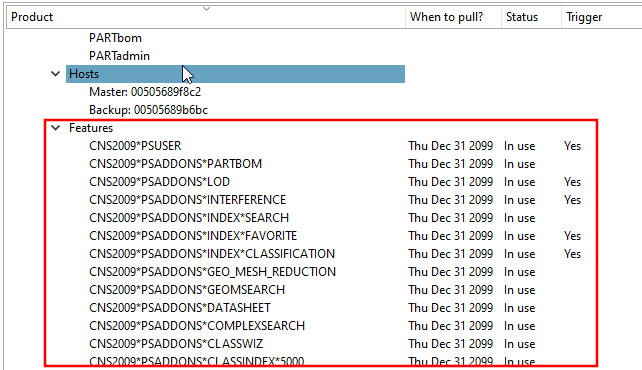

Features
... shows the single license keys, which are contained in the respective license product.
The Status column shows whether the key is assigned [In use] or not assigned [Not in use].
The Trigger column shows whether the key was the trigger for the product document by means of Yes/No [No].
Details
... shows customer name, license type, issue date and number of products.
