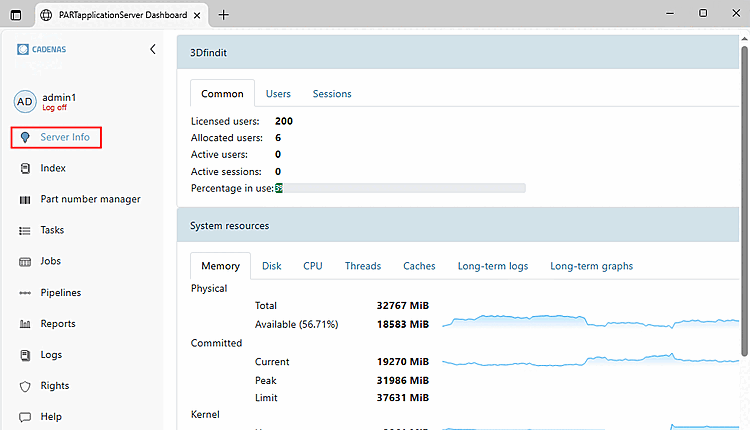

Under Serverinfo you will find a large number of subheadings, organized via Tabbed pages. A few points are listed below as examples:

3Dfindit
- General
- Users
- Meetings
System resources
- Memory
- Disk
- CPU
- Threads
- Caches
- Long-term values

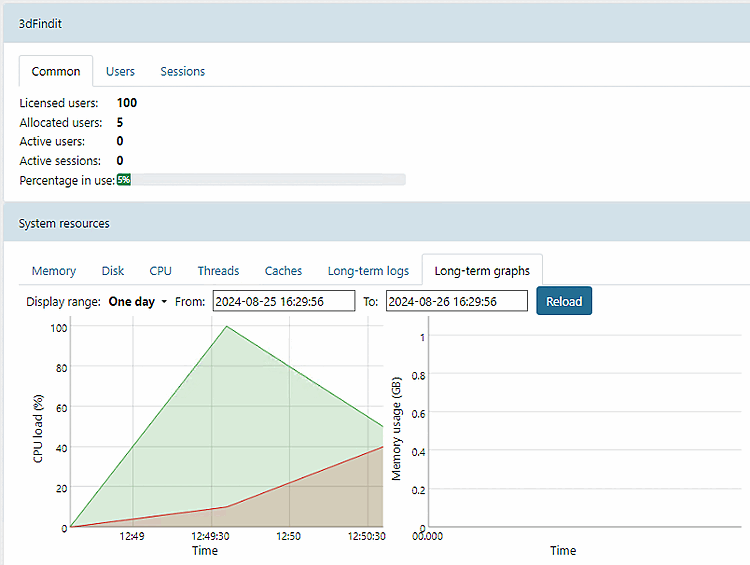

- Long-term graph
  pappserver.cfg
```
[ManagementModule]
EnableInterceptor=true
EnablePerfLogToDB=true
```
  Wenn Sie Auswertungen sehen möchten, die in der Vergangenheit liegen, müssen diese in der Datenbank abgelegt werden. Setzen Sie hierzu den Schlüssel EnablePerfLogToDB auf "true".
Server status
- Services
- Web modules
- Users

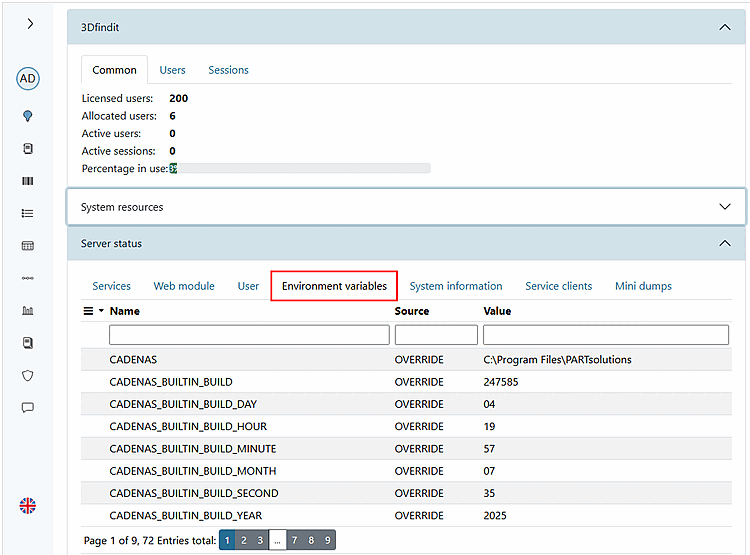

- Environment variables: All environment variables of the server are displayed, for example CADENAS_DATA or CADENAS_LICENSE.

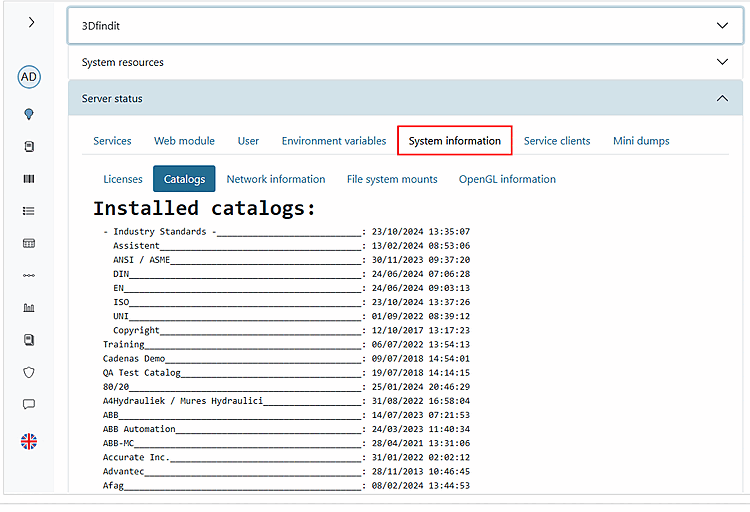

- System information: On the System information Tabbed page you will find subcategories for licenses, catalogs, network information, file system mounts and OpenGL information.
- Service clients

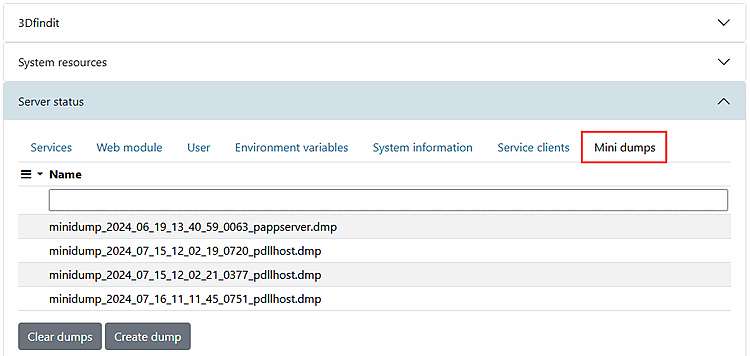

- Mini-dumps: Mini-dumps of the PARTapplicationServer

[Note]

Note

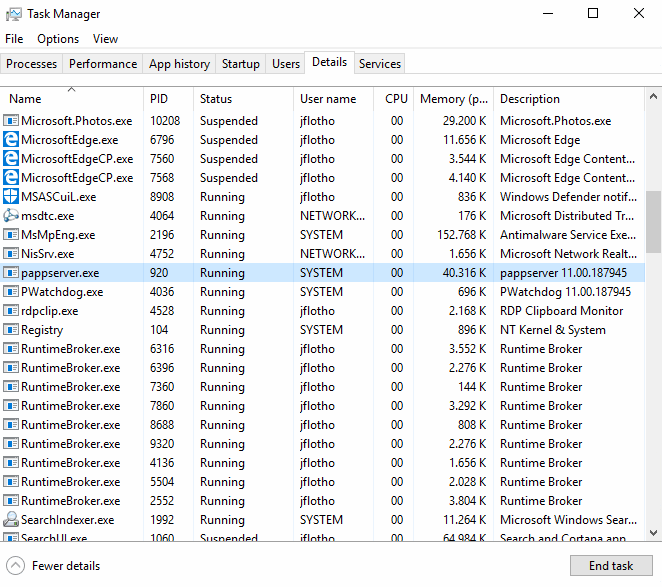

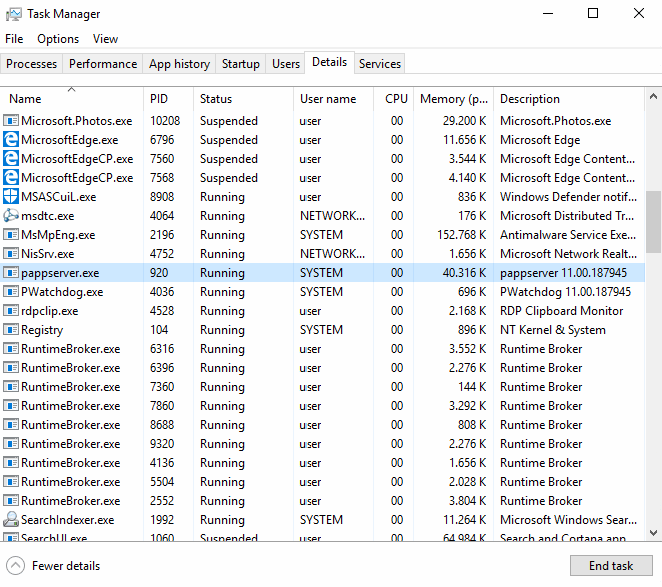

If needed, have a look on server processes.

Each accessing client creates a process on the PARTapplicationServer.
