4.25.8.2.5. Assign / delete ERP numbers

Assign ERP numbers
Use this command to assign an ERP number to a link that has already been created. Data records without an ERP number are displayed in red by default.
Select a data record (or several) and call up the context menu command Assign ERP numbers.

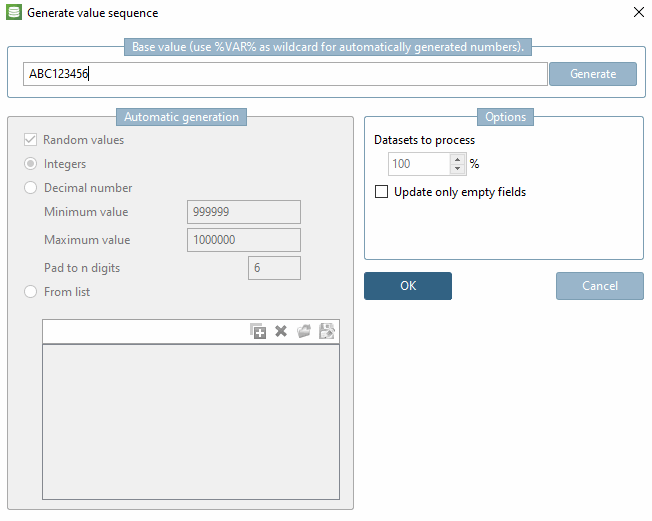

-> The Generate value sequence dialog box opens.

There are different options for the value generation:
- Enter a fixed desired ERP number in the input field. (Only useful when selecting a single data record)
  -> The Automatic generation area is grayed out.
- Press the Generate button.
  -> A base value with a variable (%VAR%) appears. You can freely adjust the base value.
  You can also freely select the start, increment and number of digits.
  - start with [start at]
  - Step size [Stepping width]
  - Number of jobs [Number of places]

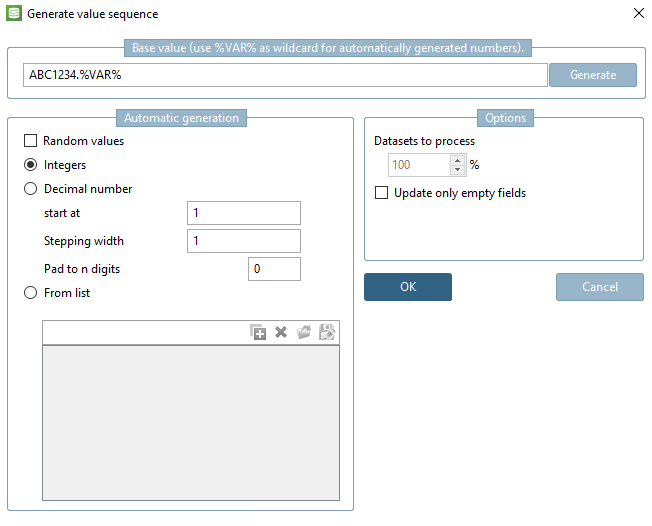

  Underlying adjusted
Revoke ERP assignment
This command removes the link between number and geometry. -> The data record is now displayed in red. However, the number is retained (you can display "empty numbers" at any time if you set the option "+ unused ERP numbers [+ unused ERP numbers] " in the list field.
Revoke ERP assignment and remove ERP number
The data record is completely deleted from the LinkDB.
