4.16.1. Keep original row / plinkcommon.cfg -> Block [PARTdataManager] -> Key "KeepOrgRow"

[PARTdataManager]
KeepOrgRow=0 (Wert 0 [default] oder 1)

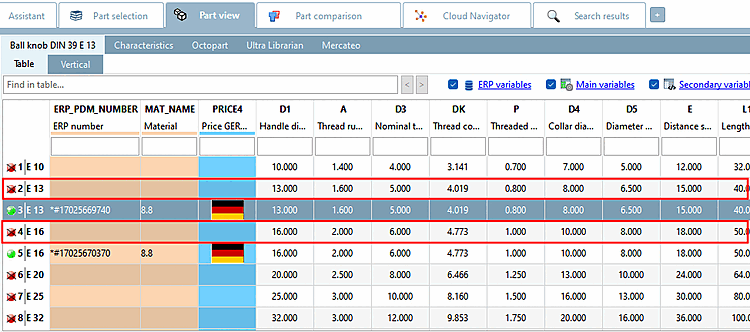

The key controls if the original row shall be displayed further on after the creation of an ERP number.

KeepOrgRow=0 (default)

For the initial creation of an ERP number the original row is filled.

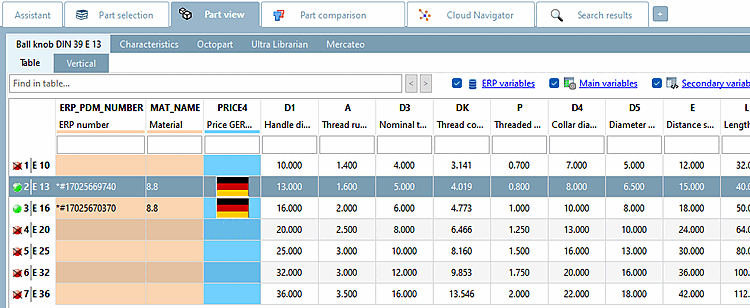

KeepOrgRow=0 (Default)

If another row shall be created with another material, for example, proceed as follows:

Select the existing row (with ERP number).

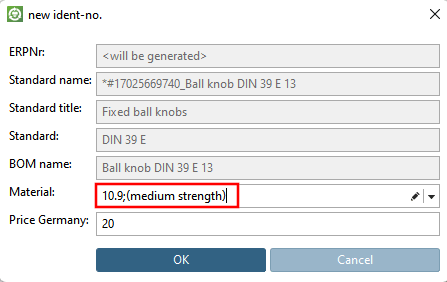

-> The New Ident Number [new ident-no.] dialog box opens.
Select a different material under Material.

Confirm with OK.

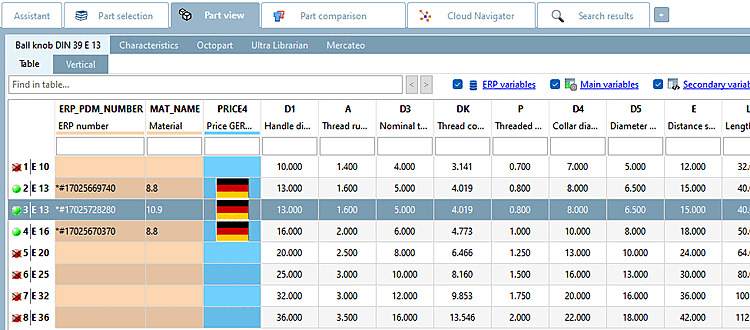

-> A new row with the new material is created.

	Note
	If the project contains value range fields (of the type geometry characteristic [Geometry attribute] such as right-hand or left-hand thread) or if a variant is created, the original row is retained even if KeepOrgRow=0! This allows you to create additional rows with other characteristics.
