2.3.9.3.1. Block [AttributeMapping(3D)]

2.3.9.3. Attribute mapping in SolidWorks 2.3.9.3.1. Block [AttributeMapping(3D)] - Set attribute language
Prev	Next

Under Attr_CopyFrom_00 set the desired language. The keys Attr_Content_00 and Attr_Section_00 remain unchanged.

default: The attributes are exported in the $CADENAS_LANGUAGE.
Assign language (german, english, french, etc.): The standard attributes are exported in the indicated language.

Note
If there is no translation for the indicated language of the attribute, no attribute is exported (not even from the $CADENAS_LANGUAGE language).

For copying attributes, the parameters "var_exclude"! and "var_visbile=1" can be used.
"var_visible=1": (default): Tells the interface that only visible attributes have to be processed.
With "var_exclude" you can assign certain attributes to an "Ignore" list.
Examples:
- ```
Attr_CopyFrom_01=default,var_exclude=A,var_visbile=1
```
  The variable A is explicitly set to the ignore list.
- ```
Attr_CopyFrom_01(isCatalog(norm))=default,var_exclude=D,var_visbile=1
```
  Here, the expression is only applied to the standards catalog.
No entry: No standard attributes are exported. (In order to explicitly export specific attributes, please see the information in the following sections.)

	Note
If there is no translation for the indicated language of the attribute, no attribute is exported (not even from the $CADENAS_LANGUAGE language).

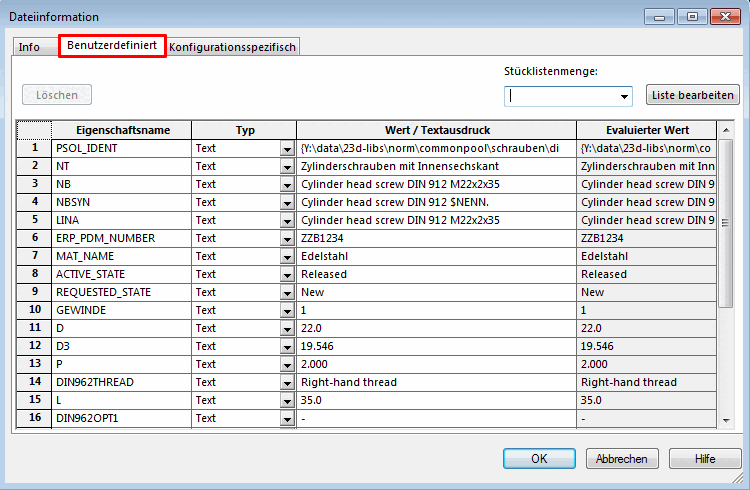

In SolidWorks these are displayed under File information on the user-defined tabbed page as standard attributes.

"File information" -> tabbed page "User-defined"
