2.3.8.2.2.1. User defined attributes with type declaration

If you don't state the attribute type explicitly, the type "string" is exported.

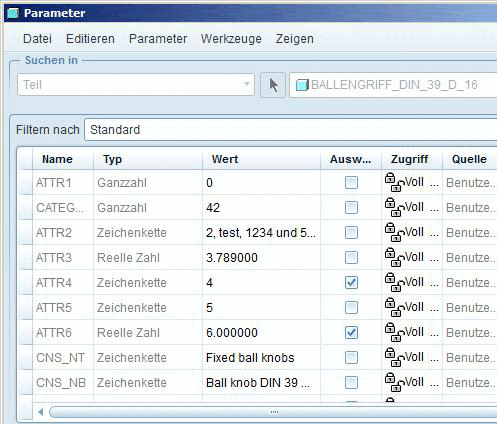

The following examples show different type declarations:

  • Integer

    Incorrect value for type "Integer": '0' is displayed.

    attr1=?"1.5"
attr1.custom=integer

  • String

    attr2=?"2, test, 1234 und 56789"
attr2.custom=string

  • Real number

    attr3="3,7890"
attr3.custom=double

  • Activate checkbox in the column "Designate"

    attr4="4"
attr4.custom=designated

  • Write protection

    attr5=?"5"
attr5.custom=readonly

  • Several type declarations can be made separated by semicolon.

    attr6=?"6"
attr6.custom=double;designated
