4.22.3.12.2. Administration - Checks via dashboard

Many administrative checks can be comfortably performed via Dashboard.

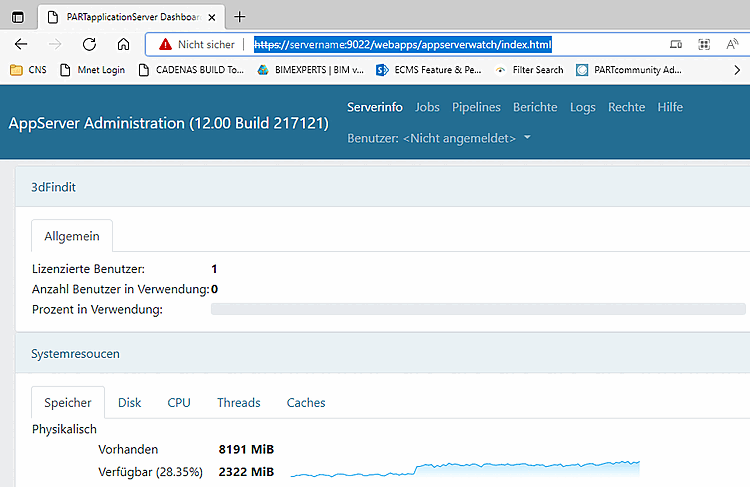

To check users, sessions and licenses, open AppServer Admin https://servername:9022/webapps/appserverwatch/index.html.

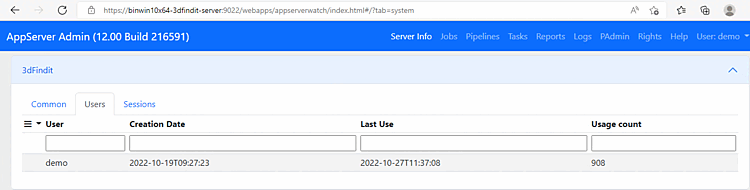

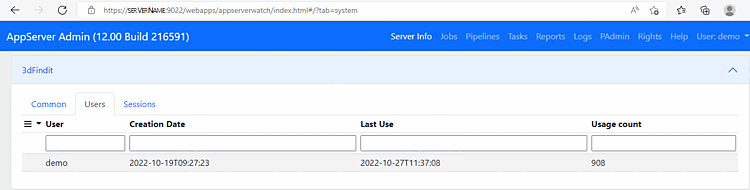

In tab Users you can see how much and which users are approved and working

	Note
Without login, only the tab Common is visible. In order to be able also to access the information of the tabs Users and Sessions, the logged in user (administrator) must have the right Appserver administrator (appserver-admin). The assignment happens in PARTadmin > category Application Server > Rights administration > tab Assign rights > Profiles. Profiles

Note

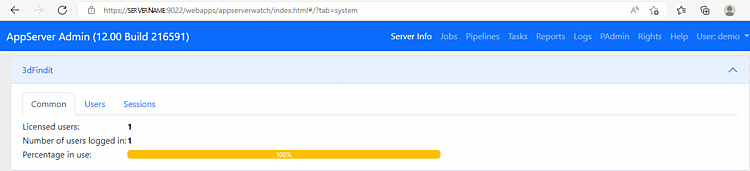

Without login, only the tab Common is visible.

In order to be able also to access the information of the tabs Users and Sessions, the logged in user (administrator) must have the right Appserver administrator (appserver-admin).

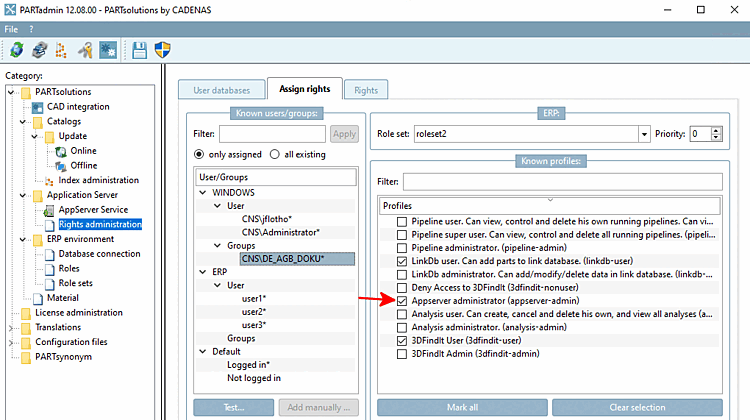

The assignment happens in PARTadmin > category Application Server > Rights administration > tab Assign rights > Profiles.

Profiles

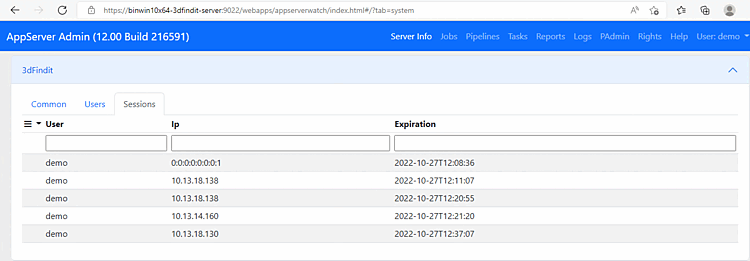

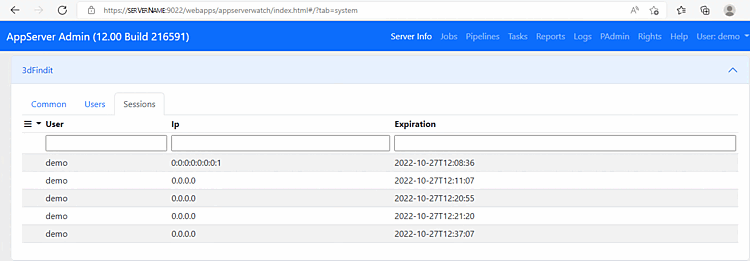

In tab Sessions you can see active sessions.

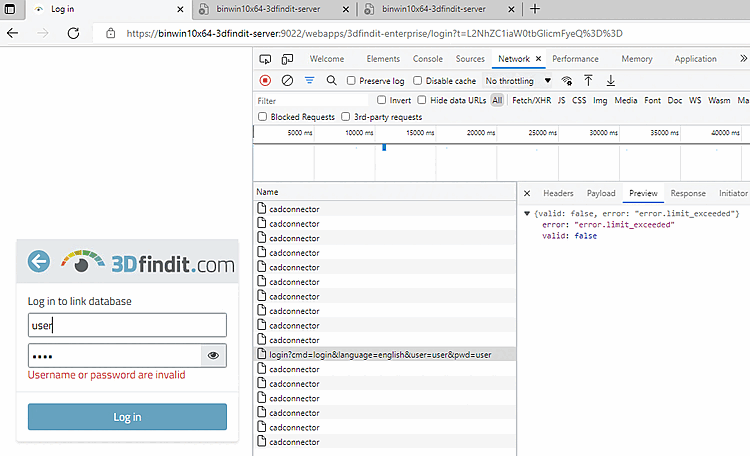

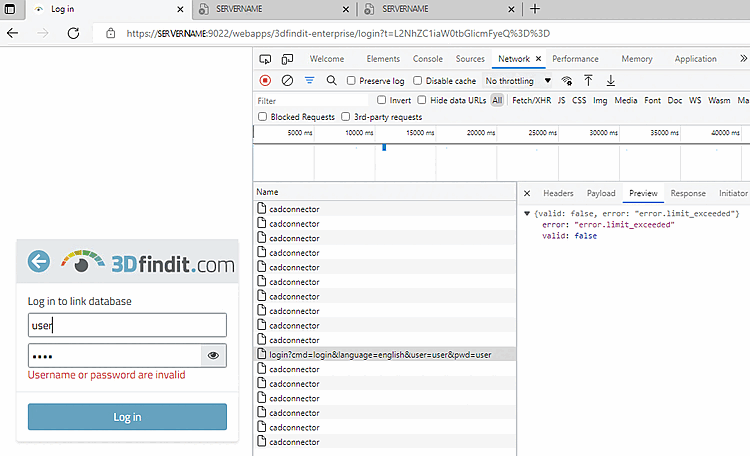

Find out, if user has wrong credentials, is not allowed or user limit is exceeded.
Press F12 to open DEV tools and navigate to Network and Preview.
- If you have SolidWorks CAD integration, then you need WebView2runtime (Evergreen Bootstrapper). You could download it from following official Microsoft Website:
  https://developer.microsoft.com/en-us/microsoft-edge/webview2

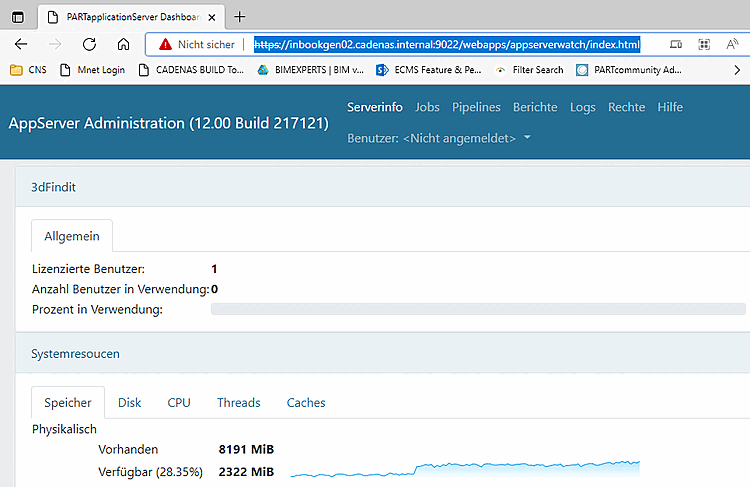

If the browser shows a "Not Secure" connection, check the certificates. See Section 4.22.3.4, “SSL encryption ”.
