4.16.4. Login options / plinkcommon.cfg -> Block [PARTdataManager] -> Key "LoginMode"

You can determine different login options:

The settings can be made via user interface or via config key:

Setting via user interface:

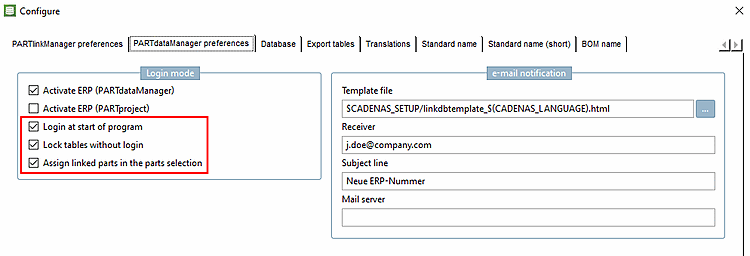

PARTlinkManager -> Extras menu -> Configure ERP environment -> Configure dialog window -> tab page PARTdataManagerSettings [PARTdataManager preferences] -> Login mode section
- Log in at program start [Login at start of program]:

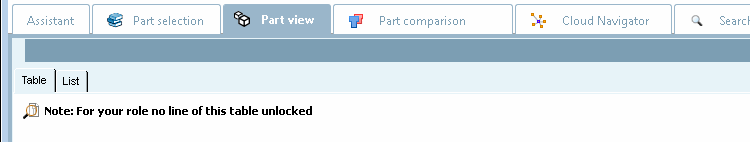

- Lock tables without logging in [Lock tables without login]:
- Select linked parts in the parts selection [Assign linked parts in the parts selection]:
  - Activated:
    If the option is activated, there is a green/semi-transparent display in the catalog index according to the definition on the General tab page under Display condition for part selection [Display condition for parts selection]. The setting in the COLORCONDITIONTREE key or under Status colors for catalog index may be overwritten and then leads to a multi-colored index tree (see Section 4.7.4.3.2, “ Status colors for catalog index - plinkgroups.cfg -> Block [role name] -> Key "COLORCONDITIONTREE<number>" ”.
  - Deactivated:
    If the option is deactivated then the catalog index is unicolored.

    "Mark linked parts in the part selection [Assign linked parts in the parts selection] " deactivated: Directory tree in one color
Settings via configuration file $CADENAS_SETUP/plinkcommon.cfg -> Block [PARTdataManager] -> Key "LoginMode"
Enter the desired values comma-separated.
Value range: MUSTLOGIN, START, HILITEINDEX
Example:
```
[PARTdataManager]
LoginMode=MUSTLOGIN,START,HILITEINDEX
```
- START: Log in at program start [Login at start of program]
- MUSTLOGIN: Lock tables without logging in [Lock tables without login]
- HILITEINDEX: Mark linked parts in the part selection [Assign linked parts in the parts selection]
