4.20. Further settings in erpcustom.cfg

4.20.1. Load additional scripts - erpcustom.cfg -> Block [LOAD]
4.20.2. Default value for "ACTIVE_STATE" for new part creation / erpcustom.cfg -> Block [VARS] -> Key "NEWASTATE"
4.20.3. Values of the "New ident number " dialog window - erpcustom.cfg -> Block [VARS] -> Key "SENDTO", "SENDFROM", "SUBJECT", "SERVER"
4.20.4. Values of the "New ident number " dialog window - erpcustom.cfg -> Block [VARS] -> Key "SENDTO", "SENDFROM", "SUBJECT", "SERVER"

$CADENAS_SETUP/ erpcustom.cfg :

This configuration file is used in order to customize ERP processing.

The file is subdivided in a couple of blocks:

USERDIALOG, VARS, LOAD, BEFTBLLOAD, AFTTBLLOAD, MAIL, ADDTODB

Entries can be made per group (role). Thereby the behavior of PARTsolutions can be adjusted on role level.

USERDIALOG
Details can be found under Section 4.11, “ Design "New ident number " dialog box - erpcustom.cfg -> Block [USERDIALOG] ”
When using the SAP MM interface, please see Section 3.3.3.6, “Customizing the 3Dfindit ERP interface ”.

Block [VARS]
The VARS block contains general keys.
The following entries can be made per group (role). Thereby the behavior of PARTsolutions can be adjusted role-specific.
Example:
```
 [VARS(Rolle1)]
```
- ERPFIELDDB=ERP_PDM_NUMBER

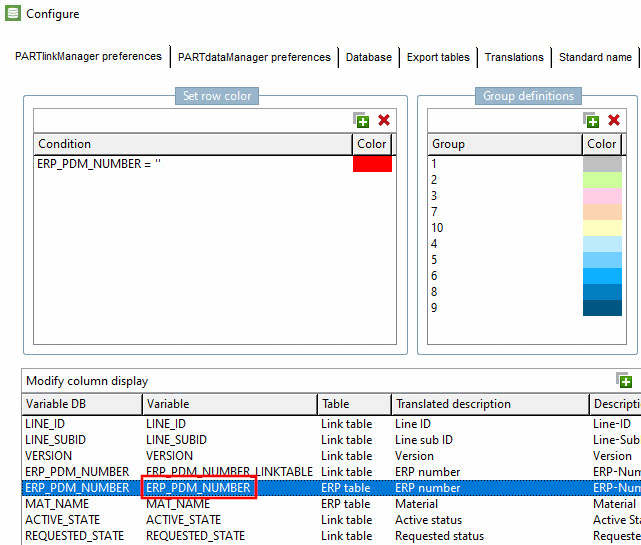

  Enter the variable name of the database column here. You can set this in the PARTlinkManager under the menu Extras -> Configure ERP environment.
- ERPFIELDLoc=
  If you enter a database field here the ERP number is copied into this field (for multiple locations only).
- TIMESTAMPNR=0/1
  0: The ERP number entered by the user or the number returned by the ERP system is inserted in the link database.
  1: A so called timestamp number is generated and inserted into the link database. This setting only makes sense in special cases (e.g. at multiple location systems).
- ERPADD=$ CADENAS_SETUP/erpadd.cfg
  Contains the path to the configuration file erpadd.cfg.
  The block name contains the path to the PARTsolutions project file (part family), the key name is the identifier for the ERP-System, key value is fixed or a variable name of the PARTsolutions table. A variable name starts with a $ character and ends with . (point).
  Example:
```
[norm/din_en_iso/schrauben/zylinderschrauben/din_912.prj]
NAME=Screw
FIELD1=$D.
```
  For more details please see in the config file itself.
- CLASS=
  e.g. CLASSVARLIST(eclass)
  The given entry is searched in the respective PARTsolutions project file and exported to the ERP system.
- E-mail settings

  Note
  By default, the settings in plinkcommon.cfgare used and not these. See Section 4.16.6, “E-mail settings / plinkcommon.cfg -> Block [MAIL]”.
  - S ENDTO=s tandardisation@company.com
    Address of the e-mail recipient when requesting a new ERP number via e-mail.
- S ENDFROM =user@company.com
  Address of the e-mail sender when requesting a new ERP number via e-mail.
- SUBJECT=Subject
  Subject line for the e-mail process.
- SERVER=mail.company
  Name of the e-mail server for requesting a new ERP number via e-mail.
- NEWASTATE=1
  State of the new created part.
  Possible values are 0 (locked), 1 (released) and 2 (expired).
- IFACEEXE=$ CADENAS/iface/sap/sapcadenassrv.exe
  Path to ERP interface (obsolete)
Block [MAPPING]
Mapping between the ERP-interface and PARTsolutions
(only used at SAP integration)
Block [LOAD]
A list of scripts that are loaded when erpcustom.vbb is started.
Block [BEFTBLLOAD]
A list of scripts that are loaded before the start of erpcustom.vbb.
Block [AFTTBLLOAD]
A list of scripts that are loaded after starting erpcustom.vbb.
Block [MAIL]
A list of the scripts that are loaded by e-mail [Request ERP number per e-mail] when the Request ERP number [Request ERP number per e-mail] button is pressed button.
Block [ADDTODB]
A list of scripts that are loaded when the Add record to link database [Add dataset to link database] button is pressed button will be loaded.

Block [SERVER_CUSTOM_SESSION_SETTINGS]

In the entries can be used to determine which scripts are used during login (e.g. in ENTERPRISE 3Dfindit) invoked become. In the script SERVER_CUSTOM_SESSION_SETTINGS filters can be set on ERP variables that relate to the Catalog browsing, table viewing, and search. To Example:

[SERVER_CUSTOM_SESSION_SETTINGS]
1=$CADENAS_SETUP/scripts/custom/customsettings.vbb

A possible callback script could look like this:

function execute(settings)
   stdprint(settings.username)
   stdprint(settings.groupname)

   set filter = createObject("cnstools.array")
   filter.add("A")
   filter.add("B")
   settings.setFilterByValue("CTNR",filter)

   set catalogs = createObject("cnstools.array")
   catalogs.add("cat/festo")
   settings.ErpFilteredCatalogs = catalogs

   execute = 1
end function
