The components must be classified in the CADENAS Revit classification (family template, placement information and other properties) and "OmniClass 2006" (see separate point Classification (General) above).

No features / radii smaller than 1.4 mm may be used for modeling. See notes on TestMeta above.

If possible, only extrusion features and no rotation features should be used. See control bodies for VDI models.

Cut-rotations (e.g. chamfers) should also consider the 1.4mm tolerance.

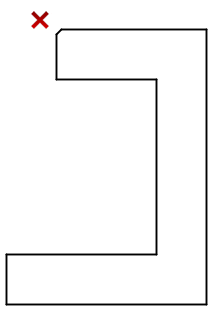

Example: Below tolerance limit

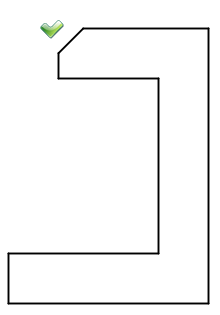

Example: Within tolerance limit

All kind of conductors, pipes, channels, etc. have to be modeled as “filled body” absolutely.

For the placement in Revit, the axes of the connection point will be used for positioning /orientation. Take care that axes orientation of the point is according to the axes in Revit (Z axis corresponds to orientation). Revit connection points always have to be in the geometric center of gravity of a planar surface.

Examples on this can be found under Section 3.5.4.2.2, “Placement”.

In order to be able to use definitions of light sources (*.ies files), parts have to be classified accordingly. See Section 3.5.4.2.1.1, “Revit: Load IES files in RFA (lighting fixtures)”.
