7.11.9. [ELEMENT_table] Table

Places a table element into sketch view.

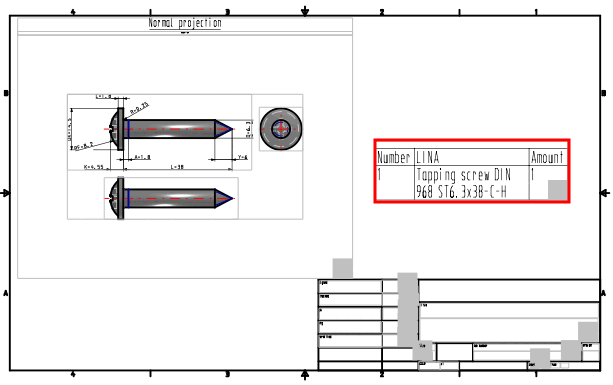

Example: 4 views, frame, text, table

The "Table" element is declared in the dw file with "ELEMENT_" followed by a unique name for the element.

Example:

[ELEMENT_table1]

The display in the Edit element dialog box is greyed out under Name.

The following attributes are available:

(Key name in dw file in bold, display name in the Edit element dialog box in brackets)

type=table (type )
Declares element type and is mandatory.
parent (mandatory) ( Parent )
position_x (X )
Indicates x coordinate.
position_y (Y )
Indicates y coordinate.
position_w (width [Width] )
Specifies the width of the box.
position_h (height [Height] )
Specifies the height of the box.
tablename (table type [Table type] )
- BOM: Default
- SCRIPT: Only CADENAS internal use
text_size (text size [Text size] )
Concerns the text in the table cells. Compare Section 7.11.8, “[ELEMENT_text] Text ”.
width_factor (Text width factor [Text width factor] )
Concerns the text in the table cells. Compare Section 7.11.8, “[ELEMENT_text] Text ”.
sizeable (changeable size [Resizable] )
Specifies whether the size and position of the table can be changed in edit mode [Edit mode].
When activated, the red frame gets a square drag point.
Declaration of the columns
- columns [Columns]
  The value of the key "column" is to be given as follows:
```
$VAR1.=Spaltenbreite , $VAR2.=Spaltenbreite , $VAR3.=Spaltenbreite
```
  The indication of the column width occurs in ratio. The percent symbol is not to be given.
  All table variables and standard variables such as $LINA. can be used.
  - $STKPOS. - Position number
    Detailed explanations on creating item numbers can be found under Section 7.16.6, “ PART-ANNOTATION ”.
  - $STKANZ. - Amount
  - $2D_AMOUNT. - Amount
  - $LINA. - BOM name
  - Article number from table (e.g. $TNR.)
  - $2D_NR. - Number
- columnames (column names [Column names] )
  Declaration of column names
  List all column names separated by a comma.
Example:
```
columns=$STKPOS.=10,$2D_NR.=10,$LINA.=30,$2D_AMOUNT.=10

columnames=Pos,Nummer,LINA,Anzahl
```

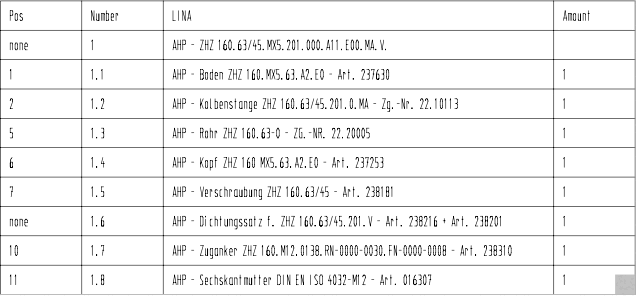

Example: Excerpt of the BOM table from a combination view
align (table alignment [Table orientation] )
Value range: top (alternatively no entry) | bottom
The specifications are important if the space indicated under "position_w" and "position_h" is larger than needed.
header_align (table header alignment [Table Head Alignment] )
Value range: top (alternatively no specification) | bottom
text_padding_x (Text padding X [Padding X] )
text_padding_y (Text padding Y [Padding Y] )

Example:

[ELEMENT_table1]
type=table
parent=frame
position_x=55.80
position_y=69.53
position_w=145.92
position_h=104.97
tablename=BOM
text_size=1.00
width_factor=0.50
sizeable=true
align=bottom
header_align=bottom
text_padding_x=2.00
text_padding_y=2.00
columns=$STKPOS.=5,$STKANZ.=5,$LINA.=60,$STKZCHN.=30
columnames=Pos.,Anz.,Bezeichnung,Zeich / Artikel Nr.
