View:

Enter the key terms for the views to be displayed in the input field:

Note You can also use the name of a DW template.

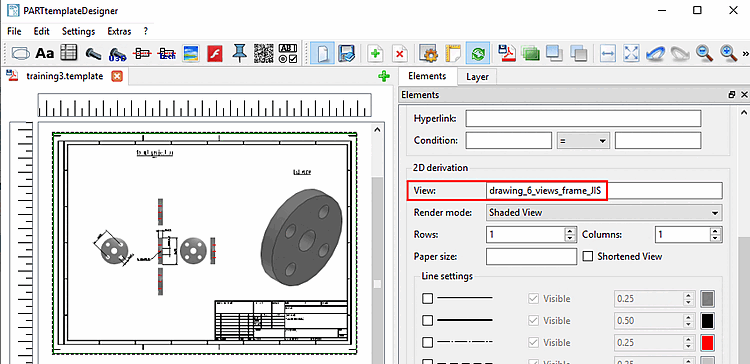

Example: "3 views + isometric drawing in frame (DIN)"

DW templates are stored under $CADENAS_SETUP/layouts/2dderivation.

You can find the template name in the section [Template] under the key "name".

[Template]
name=drawing_4_views_frame_DIN

Also see Section 7.11, “Docking window "2D derivation" - Create own Combination views (*.dw) ”.

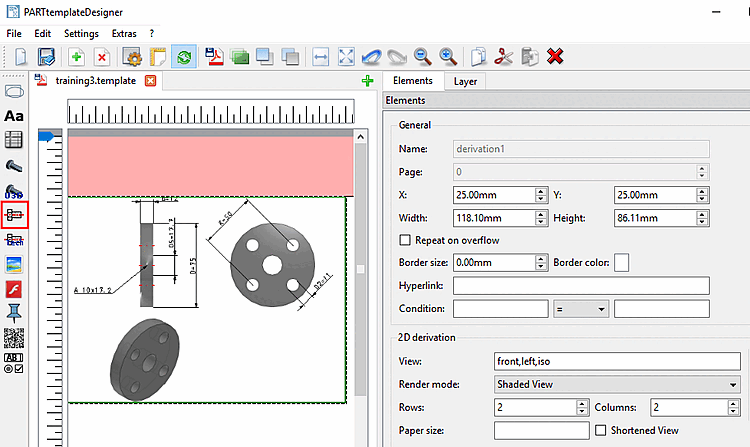

Render mode:

Rows / Columns:

Example: Setting 2 Rows, 2 Columns:

Shortened view:

Shortened view is a special feature for catalogs which may look bad in the 2D derivation due to their proportions. This may happen with very long cylinders, for example. The 2D derivation would then appear to look more like a line than a cylinder.

If the part has an additional shortened view, then it is used (if activated).

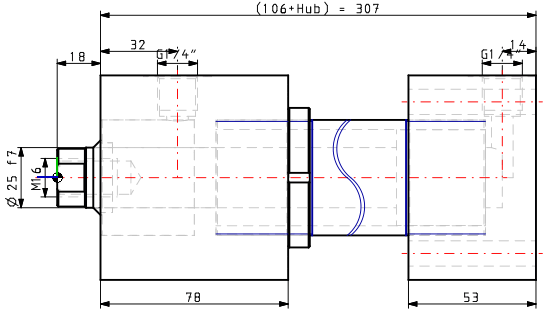

Example: Checkbox "Shortened view" activated

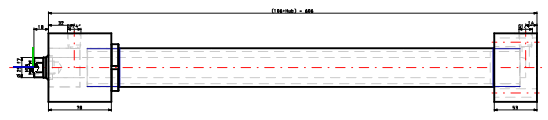

Example: Checkbox "Shortened view" deactivated

Also see Section 12.2.2.4, “ Alternative 2D size Optimize drawing view on paper size / ” and Section 5.10.1, “ 2D derivation: Alternative 2D size (shortened) ”.
