Start only one instance of the Designer [Start only one instance of PARTdesigner]: If this option is activated, several PARTdesigner sessions cannot be started at the same time.

Set decimal point to numeric keypad [Put decimal place on number block]: This option changes the decimal point key on your keyboard to a period, i.e. you press the decimal point key but write a period. This is an advantage because the notation of decimal numbers in PARTdesigner always requires dots (3 . 5mm) instead of commas (3 . 5mm).

Automatic zoom:

Hide grid in the layer preview: [Hide grid in the layer preview]

Display dependency lines on the left [Show dependency lines on the left]:

Show quick access to selected element [Show quick access buttons for selected element]:

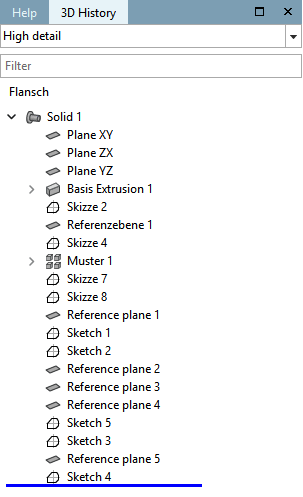

Integrate history in 3D view [Show history in 3D-Pane]:

Mouse wheel always active in variable manager drop-down fields [Always activate mouse wheel in variable manager's drop down fields]:

Suggestions for description in variable manager from translation suggestions:

When starting without a component, open the last one used [When starting without a file, load the most recent]:

Maximum calculation time:

Switch to the specific calculation status when editing: See Section 7.6.2.17, “Display specific calculation status ”.
