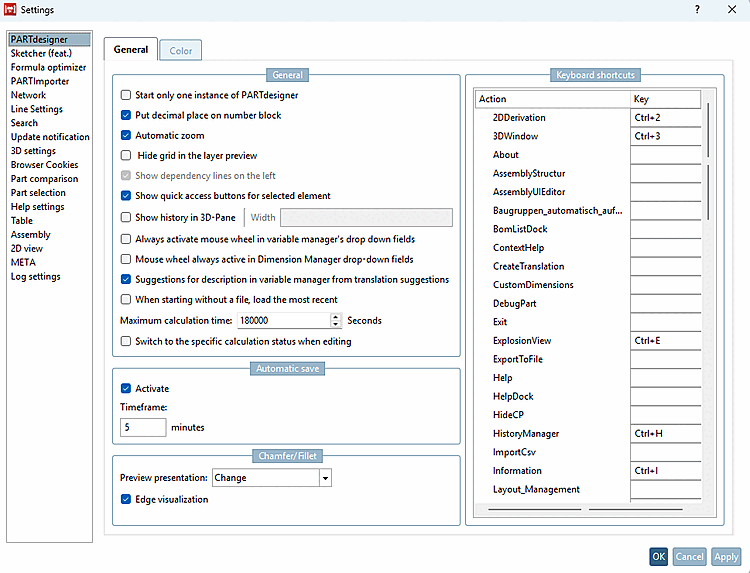

Use feature based Sketcher for new sketches: no longer relevant
Start only one instance of PARTdesigner: If enabled, it is not possible to start multiple PARTdesigner sessions at the same time.
Put decimal place on number block: This option changes the comma key of your keyboard to point, meaning you use the comma key but write a point. This is advantageous because decimal numbers basically require points in PARTdesigner (3 .5mm) instead of 3 ,5mm).
Once the option Activate is selected, the geometry is automatically saved in configurable intervals. Enter the desired interval Timeframe in minutes.
Colors specified here are displayed in the Variable Manager under Save location (compare).
