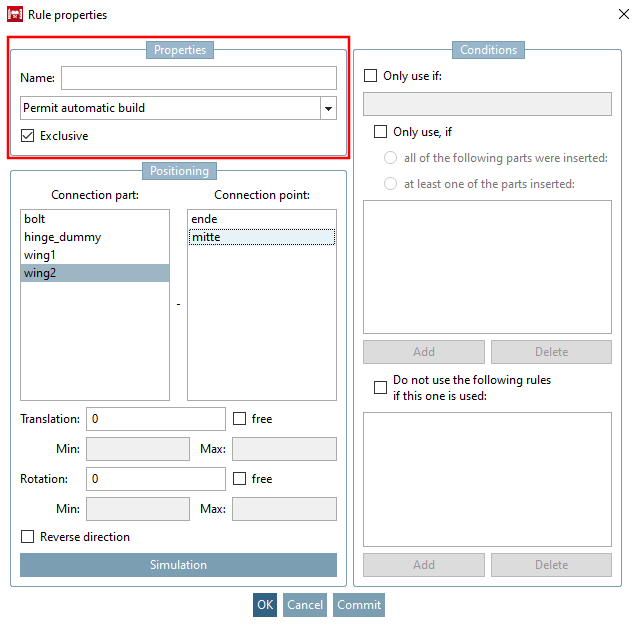

Name: The name of a rule has to be unique and cannot be changed anymore after confirmation with OK.
List field:
- Forbid autom. build (X)
  ...excludes the part which is created by this rule from the automatic assembly build through the user.
- Admit autom. build (U)
  ...includes the part (which is created by this rule) in the automatic assembly build (by user).^[107]
- Always build automatically (V)
  ...includes the part (which is created by this rule) in the automatic assembly build.
Note

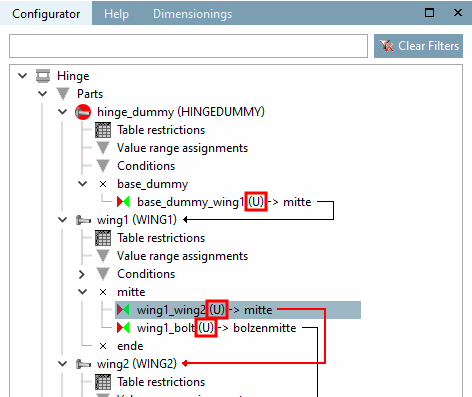

The abbreviation in parentheses in the Configurator indicates the used setting in the list field under Properties.

Exclusive: If there are different parts assigned to one connection point you can define a certain part as „exclusive“. Consequence: As soon as this certain part is selected the others (alternatives) are not available anymore.

^[107]Information on automatic assembly build in PARTdataManager is found under Section 3.1.19.1.5.4, “ Connect assemblies automatically ” in PARTsolutions - User manual.
