7.13.5.7.1. New Rule / Properties of the Rule

7.13.5.7.1.3.1. Conditions - Use only if applies
7.13.5.7.1.3.2. Conditions - Only use if
7.13.5.7.1.3.3. Conditions - Do not use the following rules if they are used

The New rule context menu command opens the Rule properties window. Within this window, a connection point of the connection part is assigned to the selected connection point of the output part.

The individual settings in the Properties, Positioning, and Conditions dialog boxes are explained below :

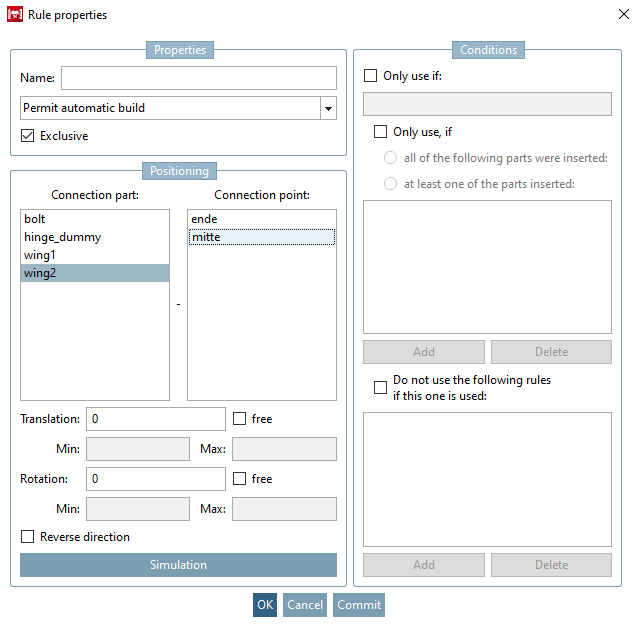

Rule properties
