7.17.9.1. Geometry

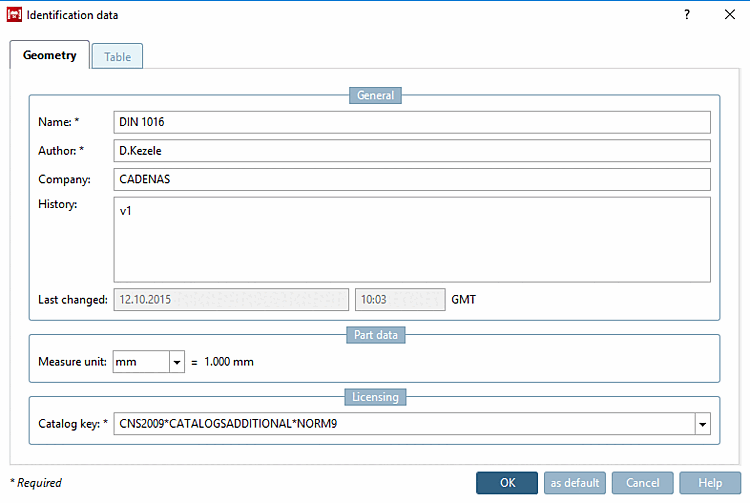

The Identification details [Identification data] dialog box appears automatically when a 3db/3gb file is saved on the Geometry tab page.

However, it can also be called up at any time via the context menu (secondary mouse button) of the component name by clicking on Identification details. [Identification data...].. can be called up at any time.

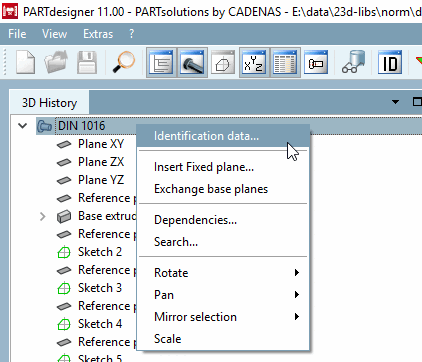

Call via context menu of part name

General:

Specific information and comments on the respective part: Component [Part name] name, author [Author], company [Company], history [History], last change [Last change]

	Note

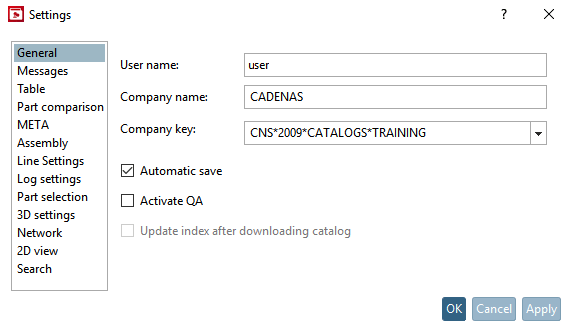

Author (user name [Username] ), company [Company] (company name [Company name] ) and catalog key [Catalog key] (company key [Company key] ) are retrieved from the settings [Settings] in the identification details [Identification data].

Note

Author (user name [Username] ), company [Company] (company name [Company name] ) and catalog key [Catalog key] (company key [Company key] ) are retrieved from the settings [Settings] in the identification details [Identification data].

Part data:
- Define unit of measurement [Measure unit] of the component part

Licensing :

Catalog key

Note

The catalog key is specified in the following schema:

CNS2009*CATALOGS*KATALOGNAME

The beginning is always CNS2009*CATALOGS*. The supplementary catalog name is completely in capital letters and possibly numbers (but without separators and special characters).^[a]

The specification of a correct catalog key is mandatory.

^[a]Since V9, the catalog key begins with CNS2009*CATALOGS*

All entries in the fields can be saved as default settings [as default] for other components (File [File] → New ) using the button of the same name - e.g. if the company name or author is to be retained.
