5.12.11.5.3. NX Configuration Steps

Adjust variables in rout_env.dat

Open %UGII_BASE_DIR%/ROUTING/manifest/rout_env.datand update the following NX Environment variables with CADENASpaths:

Attach the storage location of the CADENASptb files (cadenas_routing_library_mm.ptb and cadenas_routing_library_inch.ptb) to UGII_EPLIB_TABLE_PATH.
Example (for "metric"):
```
UGII_EPLIB_TABLE_PATH=$UGII_BASE_DIRrouting/ugroute_mech/metric/tables/;

D:/CADENAS_ROUTING/
```

Attach the location of the prt files to UGII_ROUTE_MECH_PART_PATH (non-teamcenter mode only, usually the pool folder)

Example (for "metric"):

UGII_ROUTE_MECH_PART_PATH=$UGII_BASE_DIR/routing/ugroute_mech/metric/parts/;

D:/CADENAS_ROUTING/consulting-1100SP9__2020-01-21__19.58__r186672/data/pool/ugnx

Update PLV files

Update the PLV files in %UGII_BASE_DIR%/ROUTING/ugroute_mech/appview/ugroute_mech_metric.plv(and - if necessary - ugroute_mech_inch.plv).

Add subnodes to plv files:

Attach the following subnode to NODE PIPING_PARTS:

!=====================================================================
!==============================PIPING PARTS===========================
!=====================================================================

SUBNODES CADENAS_ROUTING_PARTS

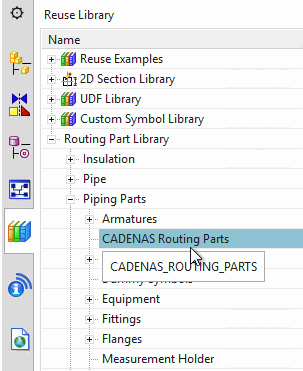

Add the "CADENAS Routing Parts" Reuse Library entry under Reuse Library -> Routing Part Library -> Piping Parts:

!=====================================================================
!============================== CADENAS_ROUTING_PARTS  ==============
!=====================================================================

NODE CADENAS_ROUTING_PARTS
  NAME CADENAS Routing Parts
  TABLE cadenas_routing_library_mm.ptb
END_OF_NODE
