Activate following keys (currently not accessible from with PARTadmin, but only directly in file)

hasPipingClass=Len( _FORMAT_DOC("<CLASSPROP(cns,CNSPIPECONNECTOR_ROUND,CNS_3DID)>").
 value() )>0

hasConnPointPipingClass=Len(_FORMAT_DOC("<CLASSPROP
 (cns,CNSPIPECONNECTOR_ROUND,CNS_PIPE_CONNECTOR_NOMINAL_DIAMETER,CNS_3DID,
 PNT<chr(44)><GLOBPROP(CONN,Name)>)>").value())>0

Point to ptb files

[CreationOptions(is3d):include(CreationOptions)] points to ptb files.

CadenasPipingPartLibraryFile(isMmDoc)=

D:/CADENAS_ROUTING/cadenas_routing_library_mm.ptb

CadenasPipingPartLibraryFile(isInchDoc)=

D:/CADENAS_ROUTING/cadenas_routing_library_inch.ptb

Adjust [CADOPTIONS]

ProcessAdditionalClasses(is3dPart)=CONNPOINT

adapt "hasPipingClass" to "hasConnPointPipingClass" in the following cases and add the following code (or activate the corresponding key)

[CreationOptions(isConnectionPoint, hasConnPointPipingClass)]

[AttributeMapping(isConnectionPoint, hasConnPointPipingClass)]

[ConnPointAttributes (hasConnPointPipingClass)]

NPS=?_FORMAT_DOC("<CLASSPROP(cns,CNSPIPECONNECTOR_ROUND,CNS_PIPE_CONNECTOR_NOMINAL_
 DIAMETER,CNS_3DID,PNT<chr(44)><GLOBPROP(CONN,Name)>)>").value()

NPS.CUSTOM=type.number

CONNECTION_TYPE=BUTT WELD

DIAMETER=?_FORMAT_DOC("<CLASSPROP(cns,CNSPIPECONNECTOR_ROUND,CNS_PIPE_CONNECTOR_EXTERNAL_
 DIAMETER,CNS_3DID,PNT<chr(44)><GLOBPROP(CONN,Name)>)>").value()

DIAMETER.CUSTOM=type.number

[ConnPointCharacteristics (hasConnPointPipingClass)]

CNS_PIPE_CONNECTOR_IS_MAINLINE=?_FORMAT_DOC("<CLASSPROP(cns,CNSPIPECONNECTOR_ROUND,
 CNS_PIPE_CONNECTOR_IS_MAINLINE,CNS_3DID,PNT<chr(44)><GLOBPROP(CONN,Name)>)>").value()

CNS_PIPE_CONNECTOR_IS_MAINLINE.CUSTOM=type.boolean

CNS_PIPE_CONNECTOR_DESIGNATION=?_FORMAT_DOC("<CLASSPROP(cns,CNSPIPECONNECTOR_ROUND,
 CNS_PIPE_CONNECTOR_DESIGNATION,CNS_3DID,PNT<chr(44)><GLOBPROP(CONN,Name)>)>").value()

ENGAGEMENT=?_FORMAT_DOC("<CLASSPROP(cns,CNSPIPECONNECTOR_ROUND,CNS_PIPE_CONNECTOR_
EXTERNAL_INS_DEPTH,CNS_3DID,PNT<chr(44)><GLOBPROP(CONN,Name)>)>").value()

ENGAGEMENT.CUSTOM=type.number

DIAMETER=?_FORMAT_DOC("<CLASSPROP(cns,CNSPIPECONNECTOR_ROUND,CNS_PIPE_CONNECTOR_EXTERNAL_
 DIAMETER,CNS_3DID,PNT<chr(44)><GLOBPROP(CONN,Name)>)>").value()

DIAMETER.CUSTOM=type.number

NPS=?_FORMAT_DOC("<CLASSPROP(cns,CNSPIPECONNECTOR_ROUND,CNS_PIPE_CONNECTOR_NOMINAL_
 DIAMETER,CNS_3DID,PNT<chr(44)><GLOBPROP(CONN,Name)>)>").value()

NPS.CUSTOM=type.number

CONNECTION_TYPE=BUTT WELD

[AttributeMapping(is3d)]

Make sure that following code is present:

Attr_Content_02=CadPipingAttributes
#:VALS_S;
#:HELP;Do not change!
Attr_Section_02=PIPING

Add the attribute sets required for piping

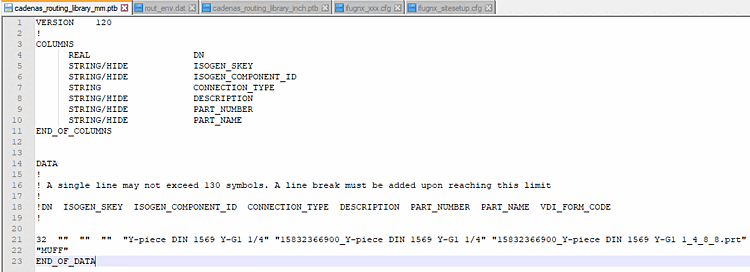

Add the attribute sets required for piping (as listed in the ptb file, customer-dependent). Make sure that you use a suitable ifugnx.cfg, cadenas_routing_library_mm.ptb and cadenas_routing_library_inch.ptb. This should contain the following piping attributes:

The type, number and role of these attributes can be adjusted in the ptb file. Corresponding adjustments must then also be made in ifugnx.cfg, in the [CadPipingAttributes] block.

Make sure that required attribute sets for piping are added (as listed in the ptb file, customer-dependent).

The type, number, and role of these attributes can be changed as needed in the ptb files.

The block [CadPipingAttributes] in ifugnx.cfg must then also be adjusted accordingly.

[CadPipingAttributes]
#:VALS_S;
NPS(isInchDoc)=?GetObject("iface.ugnx.piping").GetLargestDiamValue(_METAOBJ)

NPS.CUSTOM(isInchDoc)=type.number

DN(isMmDoc)=?GetObject("iface.ugnx.piping").GetLargestDiamValue(_METAOBJ)

DN.CUSTOM(isMmDoc)=type.number

ISOGEN_SKEY=?chr(34)+_FORMAT_DOC("<CLASSPROP(cns,CNSPIPING,CNS_PIPE_PART_ISOGEN_CODE)>")
 .value()+chr(34)

ISOGEN_COMPONENT_ID=?_FORMAT_DOC(chr(34)+"<CLASSPROP(cns,CNSPIPING,CNS_PIPE_PART_
 DESIGNATION)>"+chr(34)).value()

CONNECTION_TYPE=?chr(34)+_FORMAT_DOC("<CLASSPROP(cns,CNSPIPING,CNS_PIPE_
 PART_TYPE)>").value()+chr(34)

DESCRIPTION=?chr(34)+_FORMAT_0((_ATTR("LINA"))).value()+chr(34)

PART_NUMBER=?chr(34)+_ATTR("NB")+chr(34)

PART_NAME=?chr(34)+_FORMAT_0("<GenNAME><MATERIAL(_)>").toFileName("_").
 RepChar("!","_").add(".prt").value()+chr(34)

PART_NUMBER(tcActive)=%TC_ItemId%

PART_NAME(tcActive)=%TC_ItemName%

"DocAfterCreate(is3dpart)"

The DocAfterCreate(is3dpart)Creation option is already available and activated by default:

DocAfterCreate(is3dpart)=GetObject("iface.ugnx.piping").CreatePTBEntry
