7.7.1.1. Call outside a component

If you right-click on the free area in the 3D view, a non-part-related context menu appears.

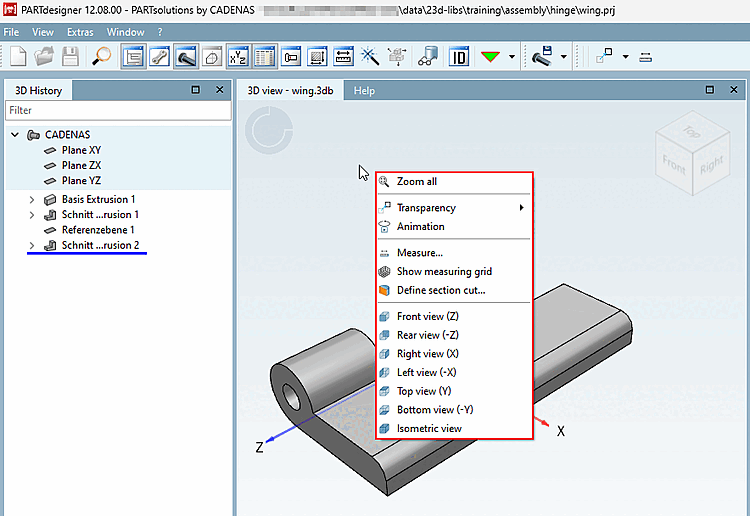

Docking window "3D view [3D view] " Context menu outside the component

Catch everything [Zoom all]
The component is displayed centered in the 3D view.
Transparency
Settings for the transparent display of the component.
Animation
Shows the component in a rotating animation.
Fairs [Measure]
Opens the measuring tool.
Display measuring grid [Show measuring grid]
Shows the external dimensions in the 3D view.
Define cutting plane... [Define section cut...]
A sectional view can be displayed, which can be drawn through the component as required using a coordinate system.
Views
The component can be displayed from the front view [Front view], rear view [Rear view], right view [Right view], left view [Left view], top view [Top view] or bottom view [Bottom view].
Isometric view
Shows the component in the isometric view.
