The CADENAS intrasystem classification CNS also includes classes needed in the BIM field.
The class
CNSSPECPROPARC
provides attributes for tender short and long texts among others. The
specific content is created in form of media variables during the
catalog modeling. The specific naming of media variables depends on the
respective manufacturer.
The export formats GAEB or ÖNORM, for example, then again use those variables' content. So the content can be shown in any tender software.
Information on this can be found under Section 5.12.13.5, “Classify tender texts: General approach”.

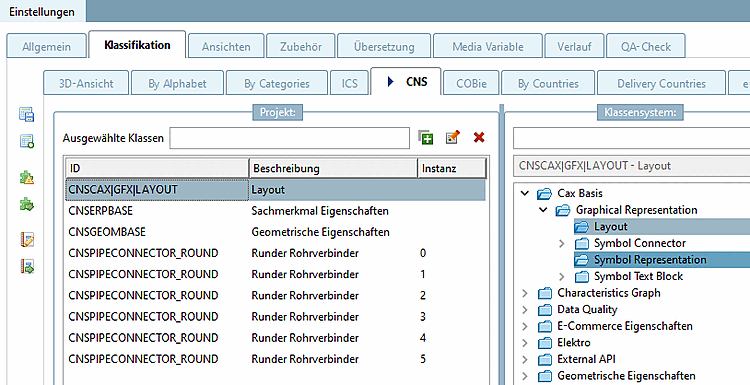

For the referencing of symbols, the CNS classification especially provides the classes CNSCAX|GFX|1 (Symbol connector) and CNSCAX|GFX|SYMREP (Symbol representation), furthermore the class CNSCAX|GFX|LAYOUT. Explanations to differentiate the two data models can be found under Section 5.12.13.2, “Classify symbols (DXF/DWG) as "Additional export formats" (manually)”.
An example for the manual connection of symbols can be found under Section 5.12.13.2, “Classify symbols (DXF/DWG) as "Additional export formats" (manually)”.
An example for the automated connection of symbols can be found under Section 5.12.13.3, “Classify symbols (DXF/DWG) as "Additional export formats" (automated) ”.
