5.12.11.1.1. Class "CNSPIPING"

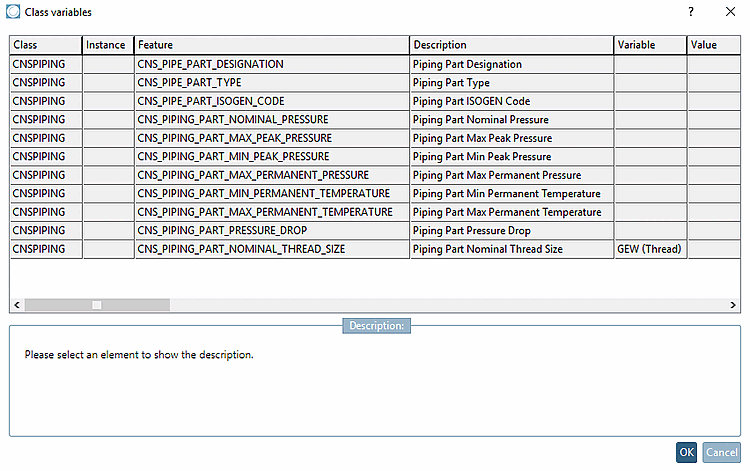

The following features are available in the CNSPIPING class:

Class "CNSPIPING"

Piping Part Designation: Type of component use (e.g. gas / water / fire protection)
Piping Part Type: Component shape description
- Inline valve/part: Straight valve/part
- Inline_Reducing: Reducer
- Coupling/fitting: Coupling/sleeve
- Flange: Flange
- Gasket: Gasket
- 90° corner: 90° corner piece
- 90° corner with reducing: 90° corner piece with reduction
- 90° corner with welded outlet: 90° corner piece with welded outlet
- Elbow: contra-angle handpiece
- T-piece: T-piece
- T-piece with reducing: T-piece with reduction
- T-piece with welded outlet: T-piece with welded outlet
- Mounting: Mounting/bracket
Piping Part ISOGEN CODE: ISOGEN code for the component - 4 letters
Piping Part Nominal Pressure: Nominal operating pressure [Pa]
Piping Part Max Peak Pressure: Maximum short-term overpressure [Pa]
Piping Part Min Peak Pressure: Maximum short-term negative pressure [Pa]
Piping Part Max Permanent Pressure: Maximum permanent operating pressure [Pa]
Piping Part Min Permanent Temperature: Minimum operating temperature [Celsius]
Piping Part Max Permanent Temperature: Maximum operating temperature [Celsius]
Piping Part Pressure Drop: Pressure drop at the component [Pa]
Piping Part Nominal Thread Size: If the corresponding table variable is specified (see Fig. „Class "CNSPIPING"“"GEW" as an example), the feature can be controlled line by line.

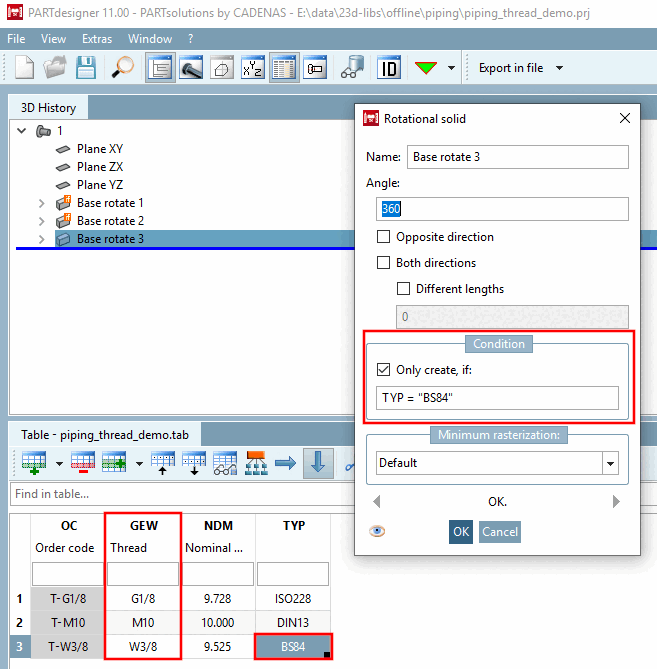

In the characteristic attribute table the thread type is controlled via conditions.
