5.4.2. "Filter" dialog area with specific categories

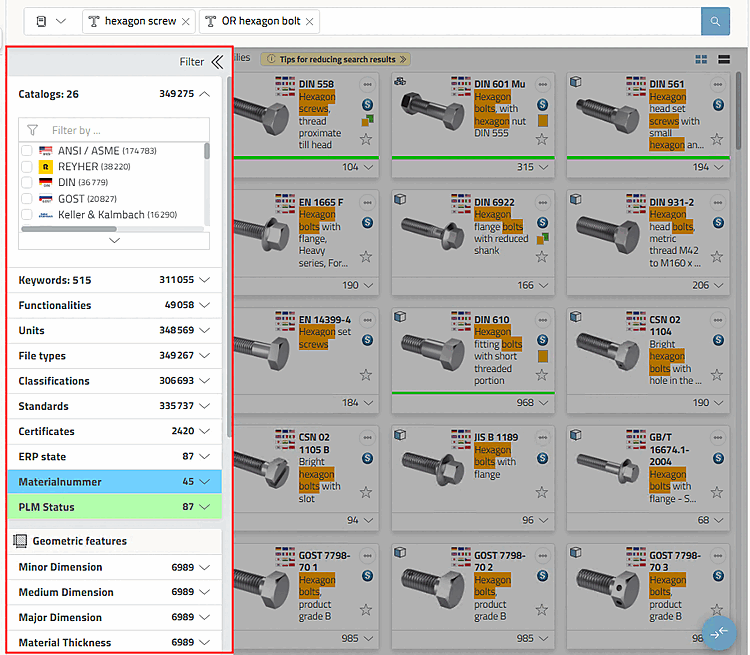

The following filters are available in the main Filter area on the left:

Catalogs:
Keywords:
Enrichments:

Icon

Meaning

Piping enriched

BIM enriched

TGA-VDI enriched

Electrically enriched

Simulation enriched

You will also find these icons at catalog level.
Supplier countries/regions [Delivery countries/regions]:
If a catalog has been classified by country of delivery, it can be filtered accordingly. The directories displayed and the table content change depending on the selection.^[21]

Delivery country
Units: mm, cm, inches, feet, etc.
File types (small selection):
- 3D native (All formats)
- 3D imported (All formats)
- Documents
- 3D crawled (manufacturer link) [3D crawled (Vendor link)]: Automatically crawled catalog with backlink to the manufacturer.
- Individual formats...
Classifications: Terms from classifications
Standards: DIN, EN, ISO, etc.
Certificates:
- RoHS certificate (restriction of hazardous substances in electrical and electronic equipment)
- REACH certificate (Registration, Evaluation, Authorization and Restriction of Chemicals)
- EMAS certificate (Environmental Management and Audit Schemes)
- ISO 14001 certificate (environmental management)
- WEEE (Waste of Electrical and Electronic Equipment) certificate

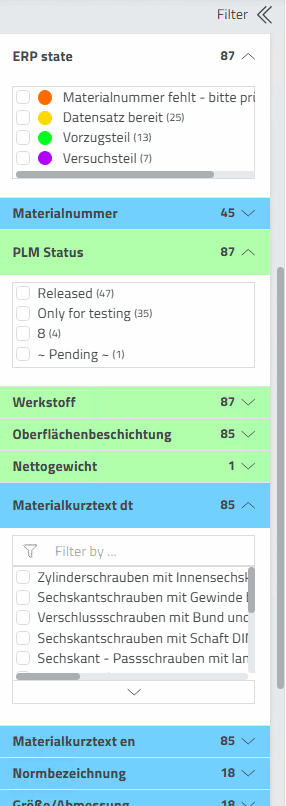

ERP variables (display depending on administrative settings)
- ERP status [ERP state]: Usually parts with ERP status "green" = exportable
- Material: Values from the ERP column "Material"
- Others such as Surface, State, Custom tariff number, Storage, Price, etc.
Geometric features:
- Smallest dimension [Minor Dimension]
- Medium dimension [Medium Dimension]
- Largest dimension [Major Dimension]
- Material thickness [Material Thickness]

An example can be found under Section 5.4.5, “Example "Filter search across all catalogs" from A to Z ”.

^[21]Prerequisite: The Delivery Countries classification must be installed. See Section 1.4.3.1.1, “ Catalog update tab page ” in ENTERPRISE 3Dfindit (Professional) - Administration.
