1.3.4. Attributes " category

1.3.4.1. Add new attribute

1.3.4.1.1. Document columns

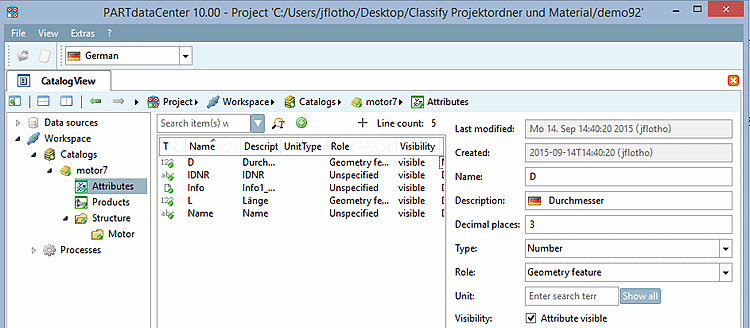

After selecting the Attributes category on the left-hand side, the attributes are listed in the middle.

When selecting a certain attribute the single attribute parameters are displayed on the right side.

	Note
When a new catalog has been created attributes are not yet displayed but have to be created first. If a catalog has been imported the attributes of the CSV file are displayed. These can be adjusted or enhanced anytime.

Note

When a new catalog has been created attributes are not yet displayed but have to be created first.

If a catalog has been imported the attributes of the CSV file are displayed. These can be adjusted or enhanced anytime.

	Note
The Attributes category contains ALL attributes in the catalog. However, after the export back to PARTsolutions only attributes which have been assigned to products are component of the catalog.

Note

The Attributes category contains ALL attributes in the catalog.

However, after the export back to PARTsolutions only attributes which have been assigned to products are component of the catalog.

The following list provides an overview of the individual functions of the attribute view [Attributes]. You may find links to detailed information there.

Buttons

Input field for textual search
Start text search

Create attribute

Note

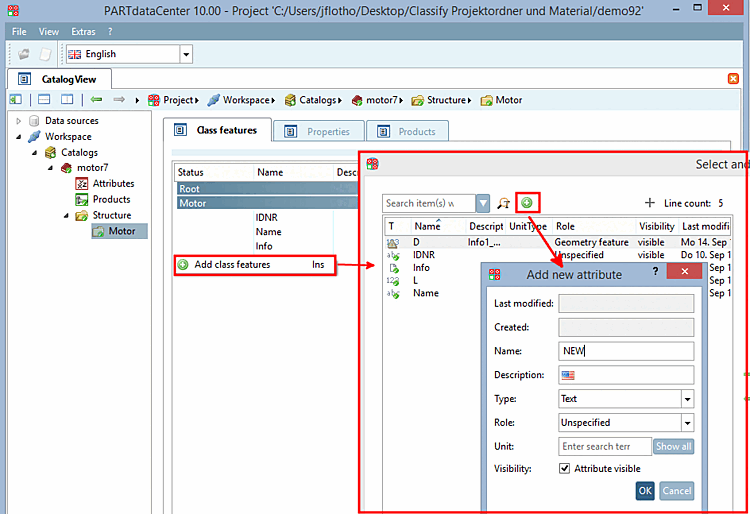

For comparison: You can also access the Add new attribute dialog in the Structure category via the Class features tab page.

What is the difference between creating attributes in the Attributes category or in the Structure category?

In the first case a global attribute is set which is then available in selection dialogs. In the second case you are using an attribute for certain class as a class feature. There you can also create new attributes. These are automatically added to the global list.

See Section 1.3.4.1, “ Add new attribute ”.

Show more attributes

Context menu

Add attribute
See Section 1.3.4.1, “ Add new attribute ”.
Remove attribute
Show history
See Section 1.3.6.6, “Remove / Restore / Show history ”.
Restore removed attributes
See Section 1.3.6.6, “Remove / Restore / Show history ”.
