1.3.5. Category "Products "

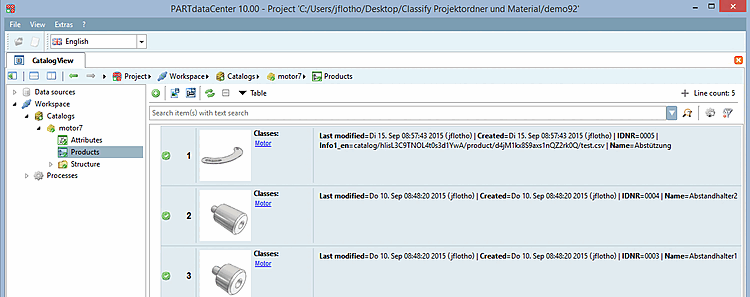

After selecting the Products category on the left, the individual products are listed on the right.

	Note
The product view contains ALL products in the catalog. After exporting back to PARTsolutions, however, only the classified products are part of the catalog, i.e. those that are in the Structure category.

Note

The product view contains ALL products in the catalog.

After exporting back to PARTsolutions, however, only the classified products are part of the catalog, i.e. those that are in the Structure category.

	Note
	If the Products view is empty, you must either add products (see Section 1.3.5.2, “ Add Product ”) or the List view type has been selected and you must explicitly define attributes for the view (see ???).

The following list provides an overview of the individual functions on the Products dialog page. You may find links to detailed information there.

Buttons

Add Product
See Section 1.3.5.2, “ Add Product ”.
Create Preview BMP from Geometry data
Mostly not needed, because preview images are automatically created when adding geometries.
Create geometry and preview from CAD Data
See Section 1.3.5.3, “ Edit documents in product ”.
Show attributes (only displayed in the list views)
Calls up the Select and edit attributes dialog box, where you can add attributes to the list views and change the order of the attributes. See ???.
update
Open all [OpenAll] (not required for classification)
Selection options for different views:
- Table
- Tiles
- List (large)
- List (middle)
- List (small)
See ???.
Start text search
Text search settings
- Filter text in links
- Filter text in products
Filter (not required for classification)

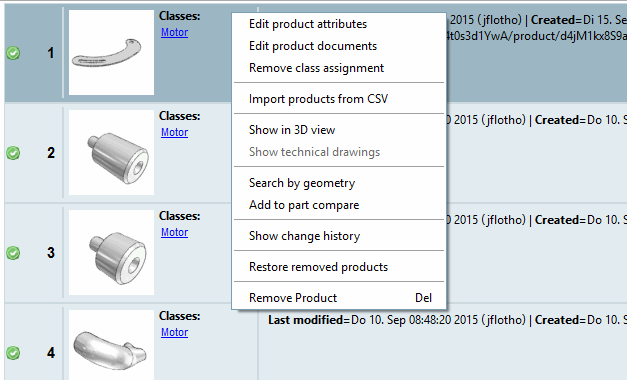

Context menu commands

Edit product attributes
Opens the table. For editing simply click into the fields.
Edit documents in product
See Section 1.3.5.3, “ Edit documents in product ”.
Remove class assignment (if available)
Import products from CSV
The import corresponds to the process described under Import catalog -> Import CSV [Import from CSV]. See Section 1.3.3.1, “Import catalog via CSV”.

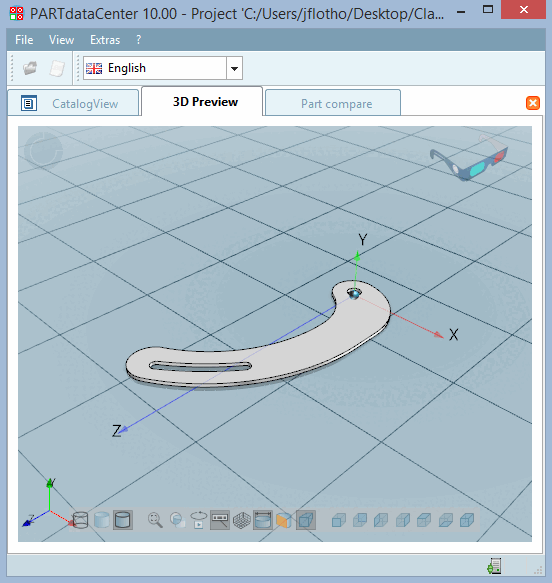

Show in 3D view

You can switch between the different tabbed pages.
Show technical drawings
Search by geometry

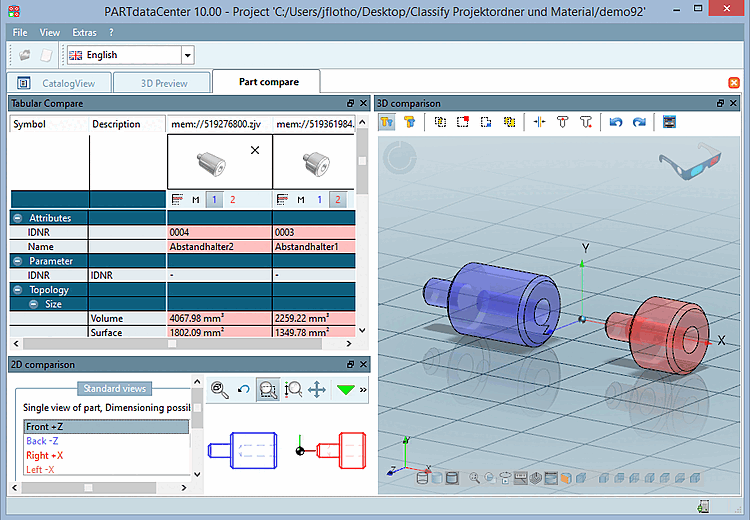

Add to part compare

You can switch between the different tabbed pages.
Show change history
See Section 1.3.6.6, “Remove / Restore / Show history ”.
Restore removed products
See Section 1.3.6.6, “Remove / Restore / Show history ”.
Remove Product
See Section 1.3.6.6, “Remove / Restore / Show history ”.
