PLM Synchro is a standard product for creating in-house parts catalogs from CAD, PLM and ERP data and as such is integrated in PARTdataCenter.

A wizard guides you through all the basic steps and makes it much easier to create your own parts catalog (see Section 1.2.2, “ Basic setup via wizard”).

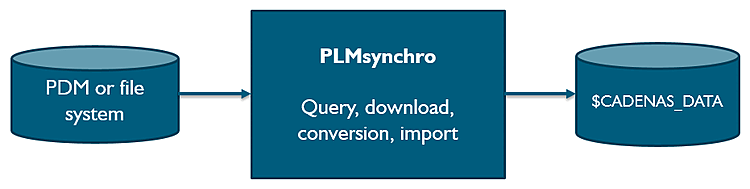

A process pipeline is automatically created, where all individual processes can be modified in detail via nodes and edges if required.

Through the devision in different process steps specific customization is possible.

Furthermore the integration of plugins allows flexible customization.

Data import happens one time initially. Then during a nightly (for example) data synchronization data changes at article master, class structure, etc. are transferred by automated processes.

Vault

SolidWorks Enterprise PDM

Windchill

Teamcenter

SAP-PLM

PRO.FILE

Enovia SmarTeam

File System

More systems upon request

All native part information

Meta data and topological data (with license CNS2009*PSADDONS*ADVANCEDTOPO in best quality)

With access to the PLM system all information available there (material, descriptions, etc.), depending on interface, possibly master data in addition

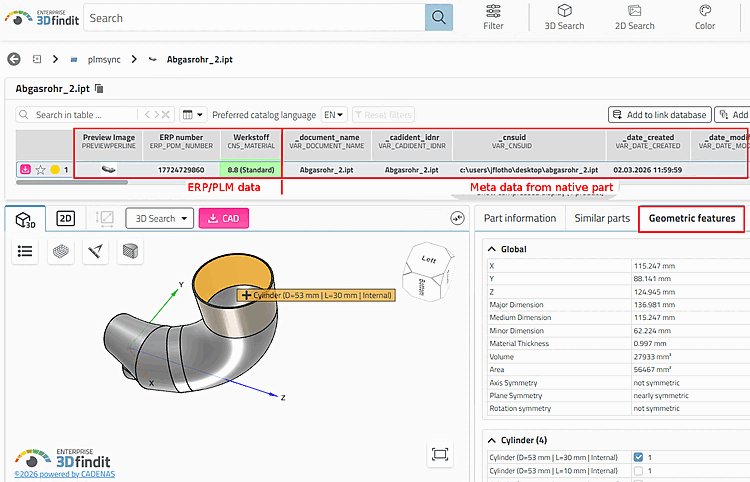

3D preview images are automatically generated and displayed in the characteristic attribute table.

Available dimensioning images, etc. can also be integrated.

A flat structure or a hierarchical structure of the source files can be displayed (according to class information from [PLM/ERP]).

Data can be available in different languages and be displayed in PARTsolutions depending on the set language.

Basic licenses:

PARTimporter License (exemplified here by Inventor/Vault)

DB
