Date of the
currently displayed project
Number of
lines in the currently opened table
Currently

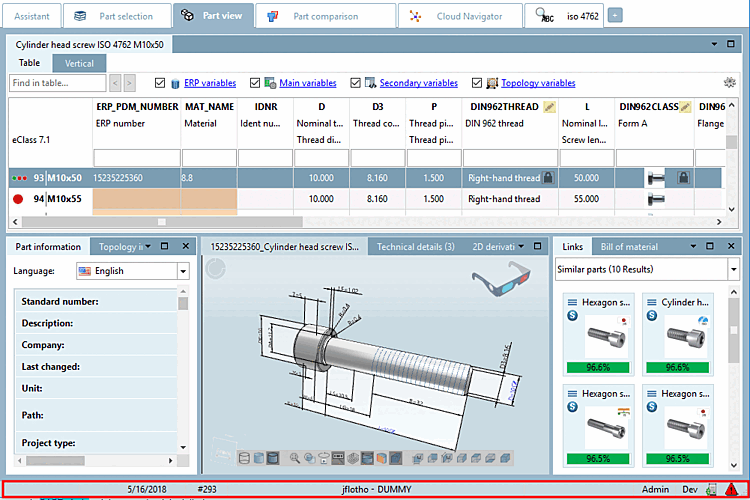

selected user and role (in the above figure "location - Location
2")
(Displayed
with ERP integration)
User
status:
Admin /
User
By
default, this is "Admin". In this way administrative tasks can be
conducted in the individual modules.
Under
PARTdataManager -> Extras -> Preferences the Administrator tabbed page is
available.
Settings for the geometric search can
be performed.
In
PARTadmin
catalogs can be deinstalled.[72]
Changes performed In PARTadmin affect all
users.[73]
Dev
(Catalog development)
Display
depends on license.

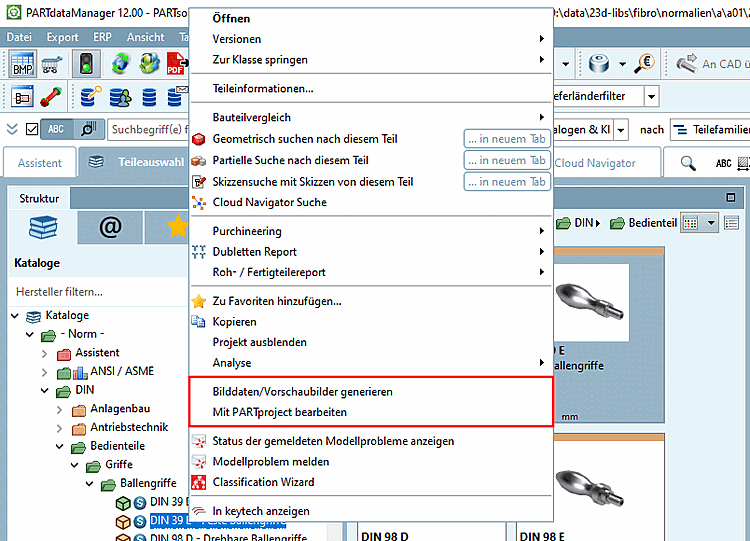

If "Dev"
is displayed the respective context menu commands for catalog
development are displayed in PARTdataManager.
AppServer
status
If the
AppServer is
active, in PARTdataManager, right below
in the status bar a
respective icon is displayed. The tooltip provides the respective
information during mouseover.
There are five
categories which can be shown at mouseover (depending on
setting):
Search service
Login service
Database service
File system service
Index service
If a connection
is established is displayed otherwise
.
Messages
available
If the icon
is displayed messages are available. When clicking on the icon the
docking window Messages
opens.
