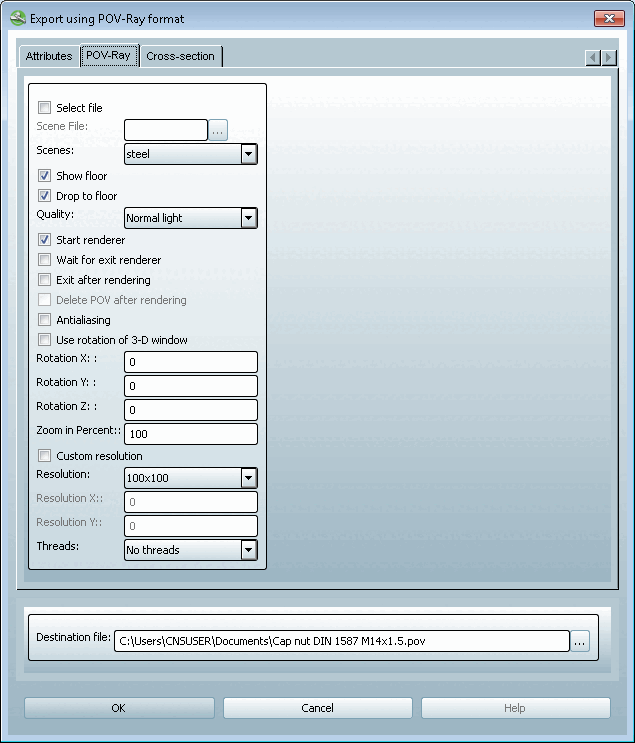

File selection [Select file] to determine the scene

Scenes file [Scene File]:

Use Browse ... to select your own file. to select your own file.

Scenes:

The following scenes are made available in the selection list:

Steel, marble, water, stone, rusty, wood, glass, radiosity [Radiosity]

Compare above.

Show floor comparisons example Fig. „Steel“.

Lower to the floor [Drop to floor]: see example Fig. „Steel“.

Quality:

To control the light reflection, you have the following settings:

Normal light, Low radiosity, Medium radiosity, High radiosity [Hight radiosity]

Start renderer

The rendering is started directly after the export.

Wait until Renderer is finished [Wait for exit renderer]:

Usually you leave this option in an deactivated state.

This function is needed for batch exports in order to prevent several renderers from being started at the same time.

Exit after rendering

Closes POV-Ray after the image file was created.

Delete POV after rendering:

If you do not want to edit the POV file later in POV-Ray, you may delete it.

Antialiasing: Edge smoothing

Apply rotation of the 3D window [Use rotation of 3D window]:

If you do not activate the checkbox then you can define the rotation with your own values.

Zoom in percent [Zoom in Percent]:

Values less than 100 zoom out of the image, greater ones zoom in.

Custom resolution:

If you do not activate the checkbox, you can define your own values under Resolution.

If you activate this option, enter your own desired resolution under Resolution X and Resolution Y.

Resolution:

In the list field select the desired resolution.

Thread [Threads]: No thread [No threads], Only external thread [Only outer threads], Only internal thread [Only inner threads], Only visible thread [Only visible threads], All threads

	Note
	The thread display requires a lot of memory space!

Target file:

Use Browse ... to determine the target file.
