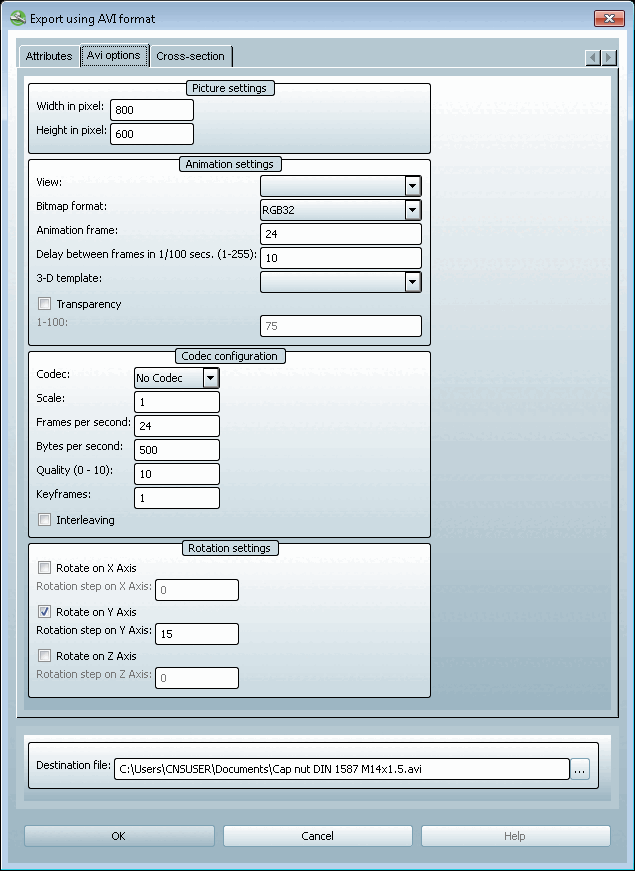

View:

Select the desired view from the list box:

Bitmap format:

Usually leave the default value "RGB32".

Otherwise select the desired bitmap format from the list field.

Animation Frame [Animation frame]:

Frames per rotation

	Note
	Please note the interaction with the settings under Rotation settings. Example: If you set a rotation step to 1°, you need 360 frames per rotation to perform a full rotation.

The more frames, the larger the file.

Distance between images in 1/100 sec (1-255) [Delay between frames in 1/100 secs. (1-255)]

The rotation speed results from this setting and the Animation Frame [Animation frame] setting.

3D template:

You can adapt the color style to the layout of PARTsolutions versions, CAD systems and other style sheets:

8.1, 9.0, Purist, Metal, Wood, Catia V5, Solid Edge, SolidWorks, NX, One Space Designer, Pro/Engineer, Inventor

Transparency:

To obtain a transparent background, activate the option.

Not transparent

Transparent

Codec

From the list field select the desired Codec.

	Note
	The list values are not set, they are read out from your system.

The best quality is provided by the No codec [No Codec] setting, although very large files are created without a codec.

Select a Codec from the list with which the quality and file size are in the desired relationship.

Scaling [Scale]: Default value '1' (smallest possible value)

Time scaling. The larger the number, the slower the movement.

Frames per second: 24

The more frames per second, the smoother the movement, but also the larger the file.

Bytes per second: Default = 500

This setting concerns the quality

Quality (0 - 10): Default: 10

General settings for quality

Keyframe all [Keyframes]: Default value =1

Usually you leave this setting. Changing to '2' would cut the number of key frames in half.

Interleaving:

Audio and video data is saved meshed together.
