3.1.6.10.3.4. Settings

Settings: Click on the icon icon opens the corresponding dialog window.

Comparative [Comparison calculation] calculation:
Live calculation in OpenGL (not all graphics cards are supported) [Live calculation in OpenGL (Not all graphic cards supported)] (activated by default)
In overlaid parts, comparison operations are calculated in live time during movement.
Transparency settings:
The transparency settings [Transparency settings] are used in the 3D view.
- Transparency 1.Part
- Transparency 2.Part
- Result
In the input fields, enter desired value for transparency (0 to 100 [invisible]).
Color settings:
Clicking in the color field opens the Select color [Choose color] dialog box.

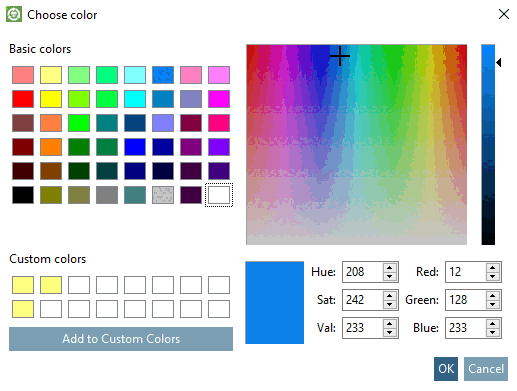

Select color [Choose color] dialog box

Select the desired color and confirm with OK.
- Color first part
- Color second part
- Result
- Brightness of hidden edges ( 2D) [Hidden edges brightness (2D)]:
  The setting is used in the 2D comparison.
  In order for "Hidden edges" not to interfere with the overall appearance, the brightness is set to 50% by default.
