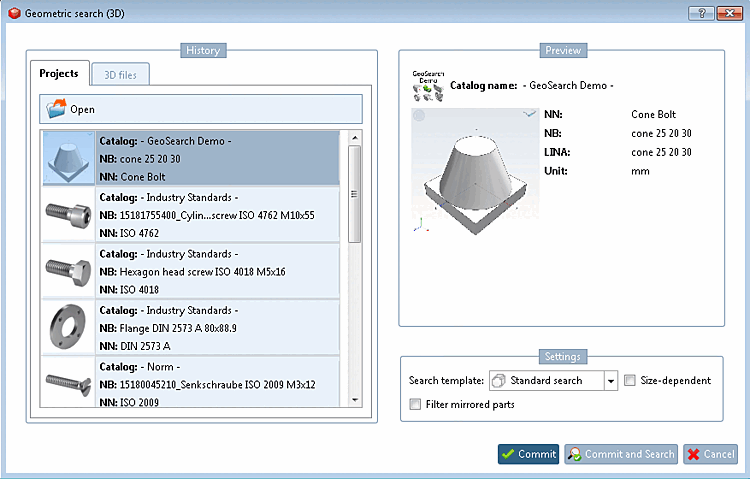

When selecting the tabbed page Projects, the lastly loaded parts are listed. You just have to select the search part and it will be displayed on the right under Preview.
If the needed search part is not yet displayed in the History section, then at first you have to load it in the Part view or you perform a Geometric search (3D) via context menu command:

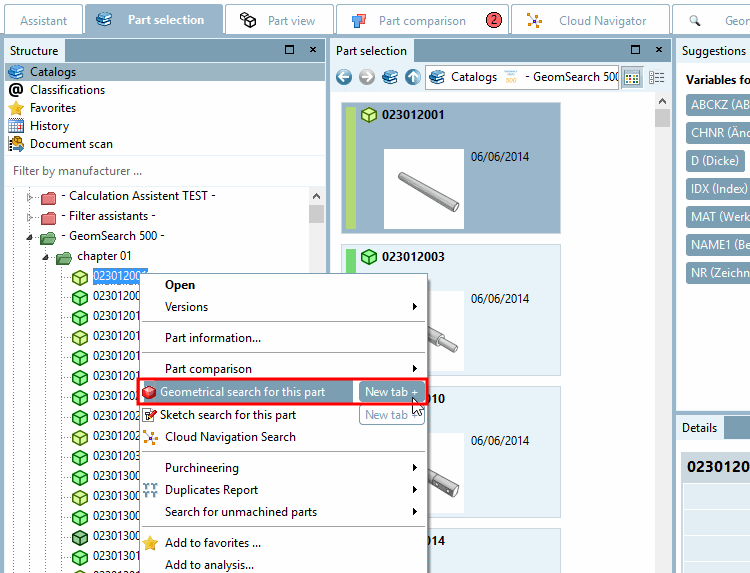

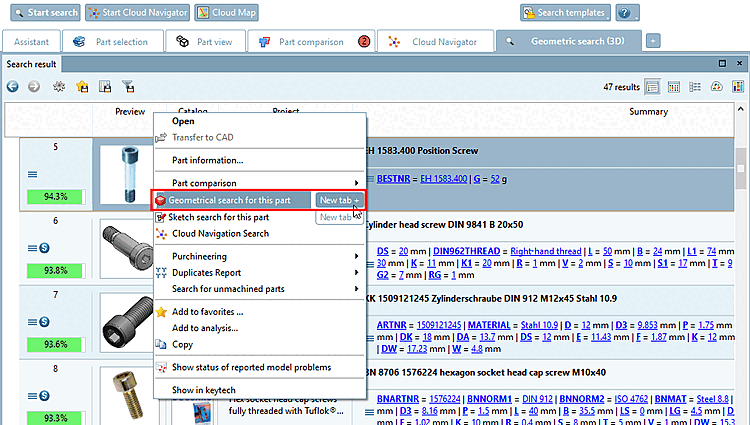

You can start a geometric search via context menu command Geometrical search for this part of each result part. Afterwards it is also listed under History.
You can also find the context menu command Geometrical search for this part in the directory structure of the following tabbed pages: Catalogs, Classes, Favorites, History and Analyses.
Furthermore you can find the context menu command Geometrical search for this part in the Part view, in the Links dialog box.
