3.1.7.6.4.  Measuring grid

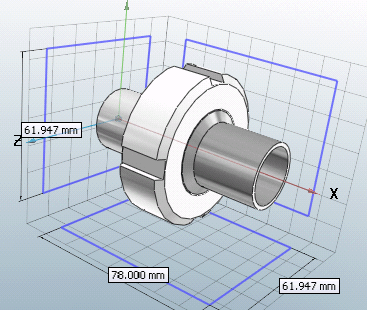

If you activate the Measuring grid menu item in the context menu of the 3D window, the maximum dimensions are displayed.
