1.6.1.6. Open component in a separate CAD window

Via Button Open open the component in a separate CAD window.

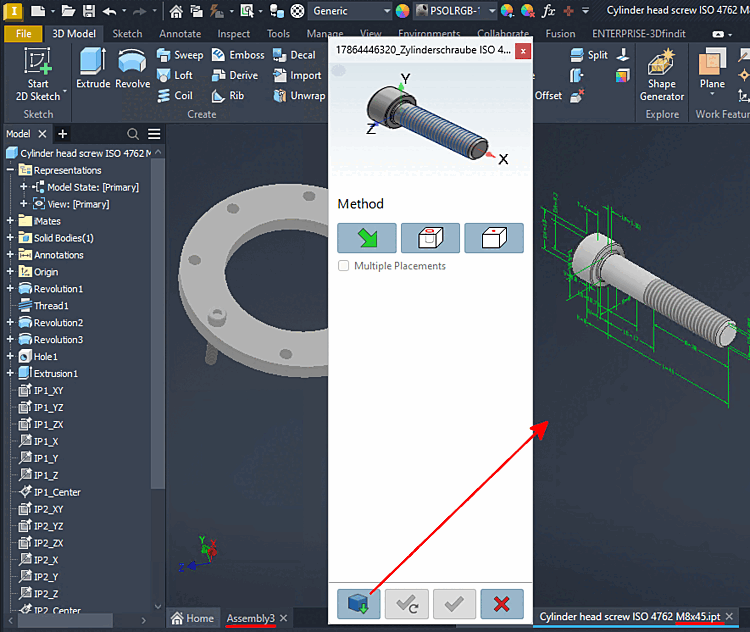

The figure shows Inventor as an example.

The figure shows Inventor as an example.
