2.6.6.4.6. References tab page

The Links docking window contains links to related components.

Depending on the selection in the list field, certain categories are used for the comparison.

These can be:

Directory
The remaining parts from the same directory are displayed.
Accessories
The parts linked in the project are displayed.

The following illustration shows the opened accessory.

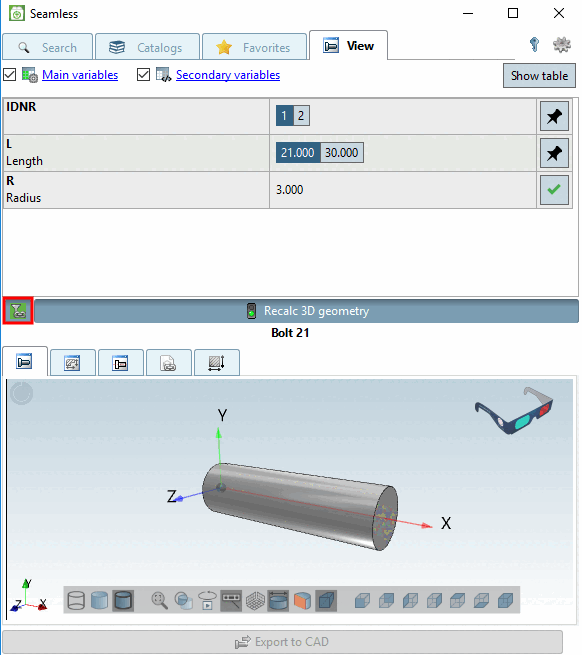

If the table of the accessory part is filtered, the accessory part filter on/off icon appears. By clicking on the icon, all characteristics are displayed and the icon is grayed out .

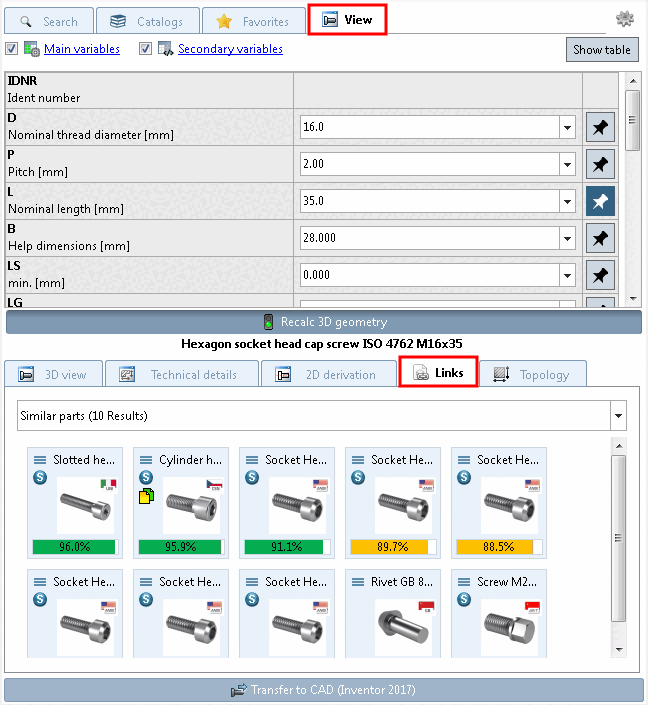

Similar parts
The geometrically similar parts are displayed.
- Current catalog - Similar parts
- All catalogs - Similar parts
- Standards - Similar parts
- Edit templates [Edit template]
