2.6.6.4.1. Determine variables in list view

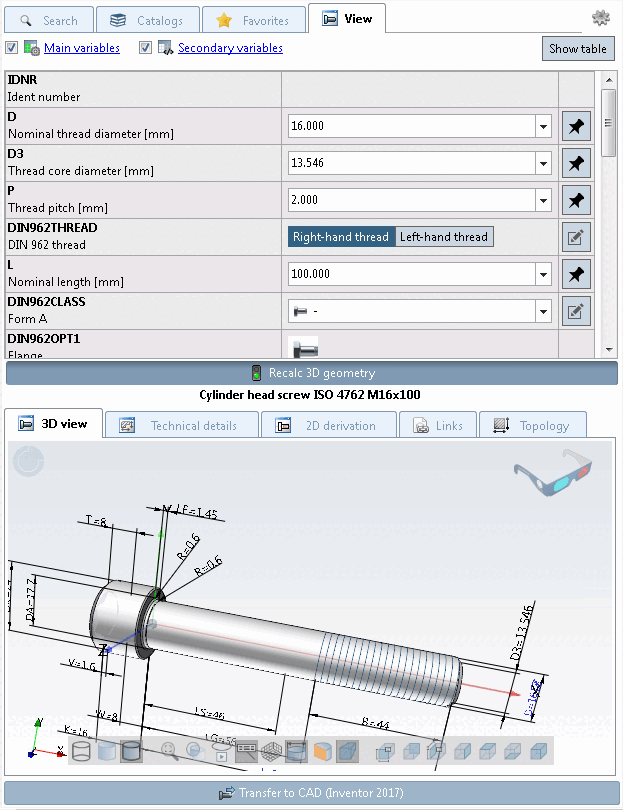

When the View tab page is opened, the variables are displayed in a list view [List view] by default.

The list display is subdivided into the following columns:

Variable name [Name of variable] with variable description [Variable description]
Variable value
There are various options here:
- Fixed value
- Value selection of a standard variable
- Value selection of a value range variable
The value can be changed via input fields, list fields, sliders, etc. (if possible in principle).
Symbol to describe the current selection status of the relevant variable.
Of particular interest is whether a component is already sufficiently defined and/or whether options still exist.
