3.1.17.2.4.2.
Exploded view
The exploded view can be called up both via the toolbar and via the menu.
The command is only active for assemblies.
The exploded view [Exploded view] shows the "drifted apart" representation of an assembly.
Set the desired display criteria in the same dialog box.
Reference lines: ...shows the relationships between the individual components using lines.
Automatic zoom: ...moves the component into the center of the window during the explosion with the largest possible display.

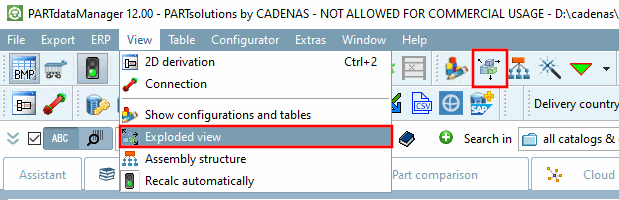

![Exploded view in "View [View] " menu and "Assembly " toolbar](resources/img/img_6c41c85addeb43c99b04a8585ad61f5b.png)

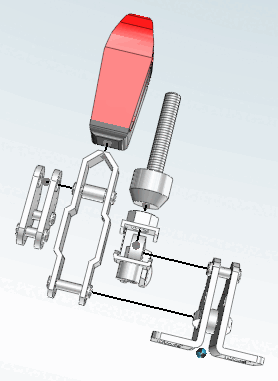

![Assembly in exploded view [Exploded view]](resources/img/img_4e47442df44244ef88dd29feb59105dc.png)
