All relevant interfaces must be installed

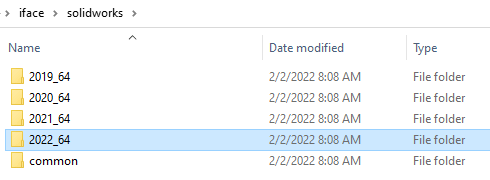

Example: Several SolidWorks interfaces installed in parallel

Before starting the respective SolidWorks version the corresponding interface must be activated by carrying out the file register.bat in the respective sub-directory of the installation.

For example the file is located under $CADENAS/iface/solidworks/2019_64.

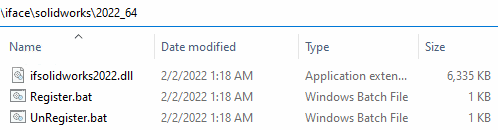

Carry out register.bat

-> If the registration was successful, you will receive a corresponding message.

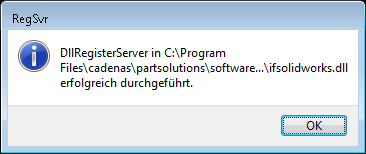

Message: Registration successful
