2.2.2. Configuring PARTsolutions interface menu and toolbar

The PARTsolutions interface menu and the interface toolbar are configured in the cross-CAD configuration file ifacecommon.cfg or the CAD-specific configuration file in the [UI] block.

Example Autodesk Inventor

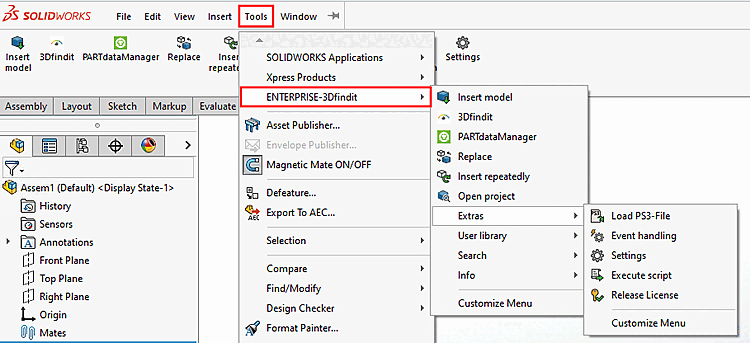

Example SolidWorks

The following entries can be used for a configuration:

	Note
	Keys according to the pattern "MN_XYZ_Number" do not exist anymore. As of V12 numbers have been replaced by meaningful names. In particular, please pay attention on this when updating from V11 to V12.

MN_insert3d_DisplayText (display text)
MN_insert3d_HelpText (help text)
MN_insert3d_SmallIcon (small icon)
MN_insert3d_LargeIcon (large icon)
MN_insert3d_XLargeIcon (very large icon)
MN_insert3d_Callback (concrete call of menu items)
MN_insert3d_Environment (declaration of the context in which the menu item should be displayed)
- menu: The command is visible in the menu.
- part: The command is visible with single parts.
- app (application): The command is visible even without opened parts, assemblies or drawings.
- asm (assembly): The command is visible with assemblies.
- draw (drawing): The command is visible with drawings.
- toolbar: The command is visible in the toolbar.

Example:

Section based on Insert model:

[UI]
MN_insert3d_DisplayText=Einfügen Modell
MN_insert3d_HelpText=Modell aus einer Bibliothek einfügen
MN_insert3d_SmallIcon=:/cadresource/icons/insert_model_3d_CAD_16x16.png
MN_insert3d_LargeIcon=:/cadresource/icons/insert_model_3d_CAD_24x24.png
MN_insert3d_XLargeIcon=:/cadresource/icons/insert_model_3d_CAD_32x32.png
MN_insert3d_Callback=?_CALLBACK_COMMAND("default_insert")
MN_insert3d_Environment=menu,part,app,asm,draw,toolbar

In order for a menu item or toolbar button to show up in the CAD system in the PARTsolutions menu/toolbar, at least the following three entries must be present:
- DisplayText
- Environment
- Callback
By default, the entire configuration is preconfigured in the configuration file ifacecommon.cfg.
Use exactly the same keys in the CAD-specific configuration files (if<cadname>.cfg) so that the menu of several CAD systems used in parallel can be configured differently if necessary. Entries there overwrite the key in the general configuration file (ifacecommon.cfg).
Structure of the menu structure
The structure is built by the entry "PARENT".
```
MN_execscript_PARENT=Extras
```

Functions and icons

(Possibly not all functions are available or needed for your configuration)

PARTsolutions
- 3Dfindit: 3Dfindit Integration
- PARTdataManager: PARTdataManager
- Insert model (3D) - Insert model from a library [Insert model from library] (MN_insert3d_DisplayText)
- Insert model (2D) - Insert model from a library [Insert model from library]
- Replace: Replace part(s) with another library part [Replace part with other part in library] (MN_replace3d_DisplayText)
- Insert repeatedly: Insert 2D/3D part or assembly from a library repeatedly [Repeatedly insert 2D / 3D part or assembly from library] (MN_history_DisplayText)
- New view - Create new view [Add new view]
Extras
- Load PS3 file [Load PS3-File]: (MN_loadpsx_DisplayText)
- Load PS2 file:
- Load PS3 file [Execute script] (MN_execscript_DisplayText)
- Release license [Release License] (MN_licenserelease_DisplayText)
- Event handling: Call upPARTsolutions Settings for processing system events [PARTsolutions settings for event notifications] (MN_eventmgr_DisplayText)
- Settings - PARTsolutions Call up the settings dialog [Launch PARTsolutions Settings window] (MN_settings_DisplayText)
Search
- Perform geometric search [Execute Geometric Search] (MN_geosearch_DisplayText)
- Partial search - Perform [Execute Partial Search] a partial search with the current part or assembly [Execute a partial search with the current part or assembly] (MN_partialsearch_DisplayText)
- Activate or deactivate LIVEsearch [Toggle LIVEsearch] (MN_togglelivesearch_DisplayText)
Info
- Licenses (MN_licenseshow_DisplayText)
- System info / Support [Systeminfo / Support] (MN_info_DisplayText)
- Help (MN_help_DisplayText)
- Info CADENAS [About CADENAS] - PARTsolutions Call up interface information [Launch PARTsolutions interface information] (MN_about_DisplayText)
User library
- Include [Insert]: Include your own part/assembly in the library [Import own part / assembly into library] (MN_nativecheckin_DisplayText)
