1.3.5.4.2. Mouse and keyboard assignments

Define yourself which functions are linked with which mouse movements and optionally with which key combination.

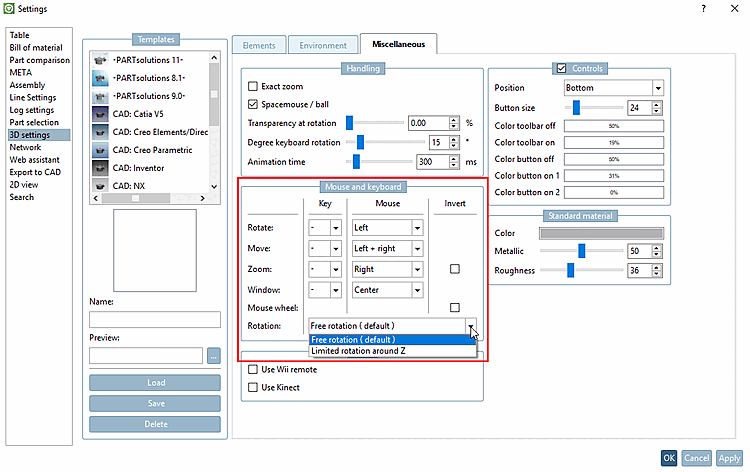

Mouse and keyboard assignments

Rotate, move [Move], zoom [Zoom]:
In the list boxes, select which mouse button you would like to use for rotating [Rotate], moving [Move] and zooming [Zoom].
In the list field under Key, you can optionally combine the mouse action with a key (Alt, Shift, CTRL). If not desired, leave"-".
Zoom:
Move the mouse upwards to enlarge.
Mouse movement downwards reduces the size.
If you activate inversion [Invert], it is the other way round.
Windows [Window]:
Enlarge by drawing a frame.
Mouse wheel: (click, drag, release)
Use the mouse wheel [Mouse wheel] to zoom in and out, and turn it down to zoom out. If you activate Reverse [Invert], it is the other way round.
- Click with mouse wheel and drag mouse: Zoom to section
- Click with mouse wheel: Makes the component transparent

  Component marked

  Transparency with middle mouse button

  Hold down the Shift key and click through transparent parts to select a part behind it and make it transparent as well.
Rotation:
- Free rotation (normal) [Free rotation ( default )]: Rotation possible in all directions (as in previous versions)
- Restricted rotation (Z): Object cannot be tilted to the side (possibly interesting in the architecture sector).
