2.3.6.1.4.
Key
"CreateIMates"
You have the
opportunity to configure the behavior of the interface for the creation
of iMates in the document.
Enabled
function allows a simplified placement at bolts, nuts, rings, washers,
bearings and lock rings.
Value range: 0,1,2,3
0: No
iMates are created.
1
[Default]: Only placement information is used in order to create
iMates.
2: iMates
are created for all existing insertion points (behavior like in
V8).
3: First
use placement information to create IMates (option 1), then - if not
successful - create IMates for all insertion points (option
2)

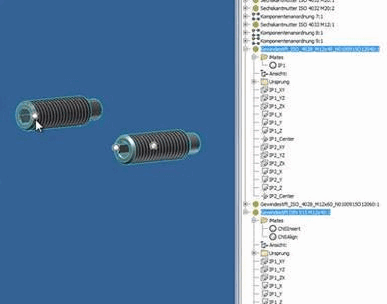

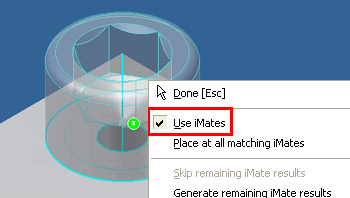

Further
exemplary figures:
![[Note]](images/note.png) | Note |
|---|
The links are retained when parts are replaced [Replace parts]! |
