3.3.11. Tekla Integration - Administration

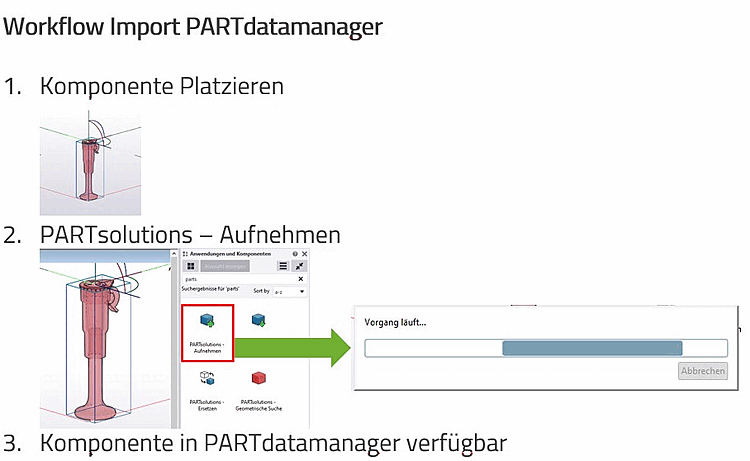

In Tekla can be recorded via function ( [Insert] Native Checkin) parts can be imported into 3Dfindit/PARTdataManager.

For this purpose, the following keys were added to iftekla.cfg with V11 SP12.

EnumerateCatalogModels=0
EnumerateSessionModels=1
EnumerateBreps=1
EnumerateCustomParts=1
EnumerateDetails=1
EnumerateConnections=1
EnumerateSeams=1
EnumerateComponentInputs=0
EnumerateComponentAttributeInputs=1
EnumerateComponentParameterInputs=0
MaxComponentInputs=0

Please note that the pipeline must be configured according to the requirements.
