The single steps during the update are displayed in the main window.

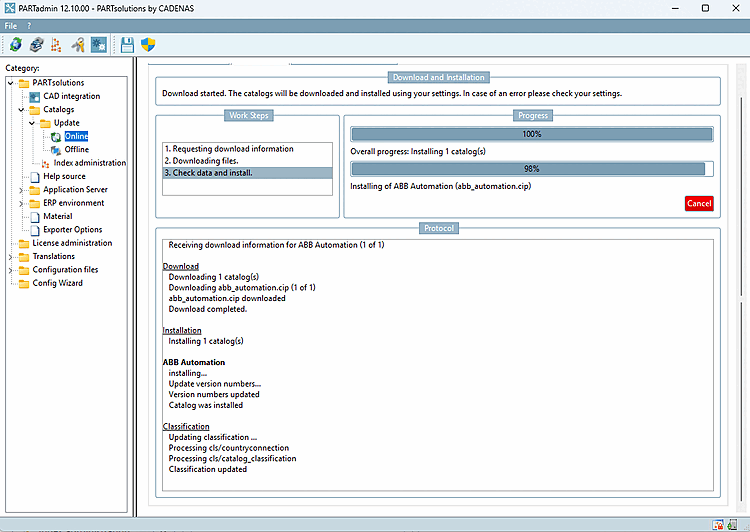

Progress bar

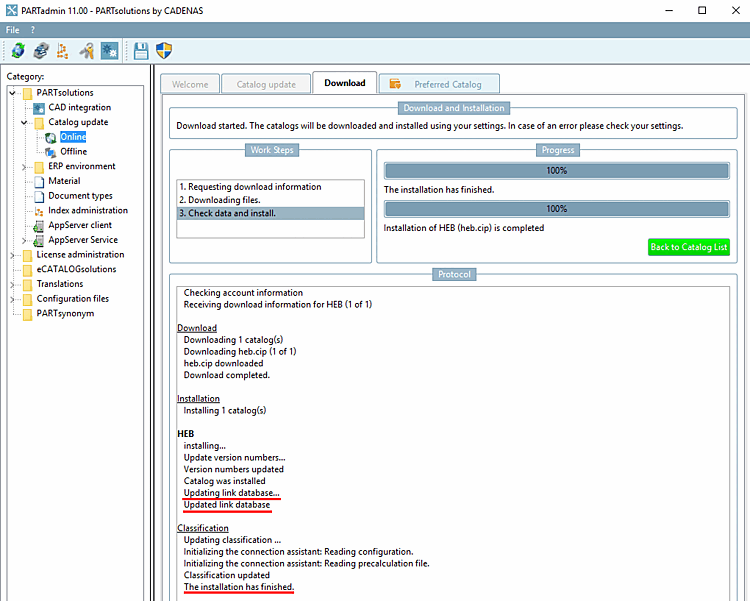

If there are links in the LinkDB, which have to be edited, the following entries appear:

Updating link database...

Updated link database

Wait until installation [Installation finished] appears complete [Installation finished].

Note If there are a lot of linked lines in the link database, this can take some time.

When the update is complete, open PARTlinkManager.

After the update now for each project line with changes there are two links (lines) with different version numbers (compare column "version" or "PSOL Project").

Note The version [Version] is encoded as a date and time. For example, v150612115815 stands for 11:58:15 on June 12, 2015. The higher the number, the more current the version.

In the Active State and Requested State columns, you can see the corresponding entries for the old and new versions (see Section 4.15.3.5.1, “ACTIVE_STATE and REQUESTED_STATE ”).

Note The values will be changed when the new assignment is processed.

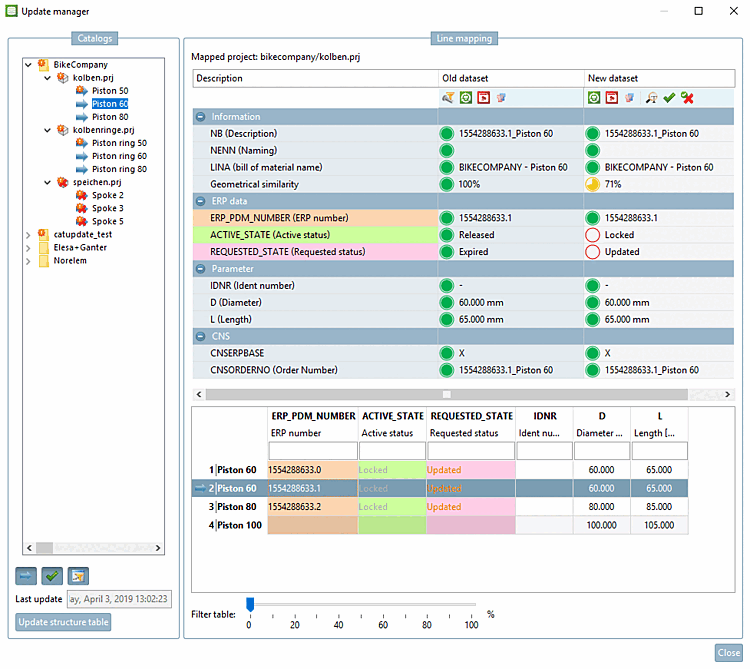

Now start the Update Manager [Update manager] under Tools [Extras] menu -> Update Manager [Update manager].

In the Catalogs area, you will see symbols at directory, project and line level that indicate certain changes. You will find a detailed description in the following sections.

Important

Please avoid carrying out an update without a connection to LinkDB! Otherwise when calling up a project with LinkDB connection, in PARTdataManager the following warning is displayed: The link database entries don't match the loaded project version. Should this be the case, at the catalog directory the following icon is displayed: A detailed description on troubleshooting is found under Section 4.15.3.3.1, “Update without connection to the LinkDB ”.
