In the category CAD integration, you can register/deregister interfaces very simple.

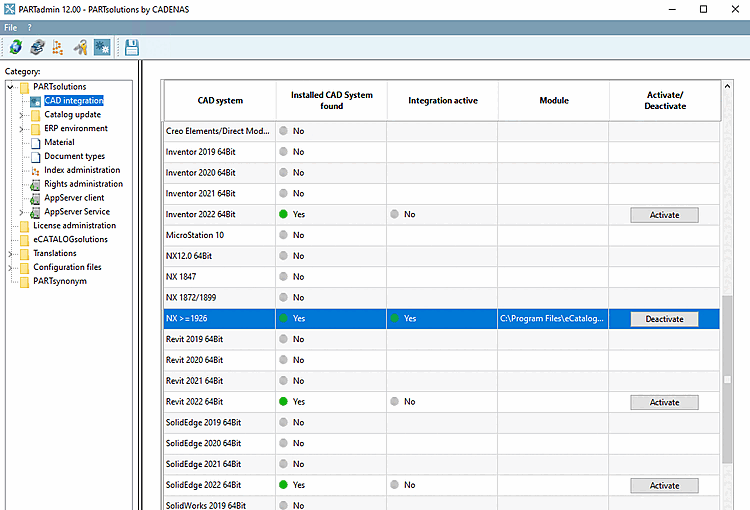

Category "CAD integration"

In PARTadmin, on the left side, select the category CAD integration. For this you have to be in the Admin mode^[1], otherwise a respective note is displayed.

-> Now on the right, a matrix with available CAD systems is displayed, where the activation/deactivation service is available in the user interface.

CAD system: Listing of all CAD systems, where the activation/deactivation can be performed via user interface.^[2]
Installed CAD System found: If "Yes" is shown, the respective CAD is installed.
Integration active: Yes/No

Activate/ Deactivate: In order to activate or deactivate the integration, click on the button.

Note

	Note
Activation adds a line under `NXxxx\UGII\menus\` in the file `custom_dirs.dat`. At this place customers may make modifications optionally. `Example: custom_dirs.dat`

Activation adds a line under NXxxx\UGII\menus\ in the file custom_dirs.dat. At this place customers may make modifications optionally.

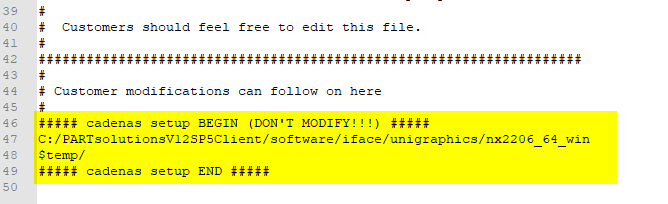

Example: custom_dirs.dat

^[1]If required, click on the button (Restart the program with administrative privileges).

^[2]when using an Offline CD listing of packaged interfaces
