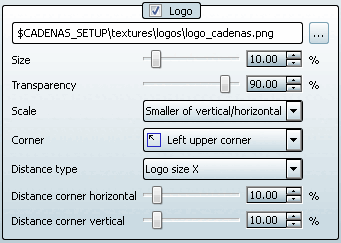

1.3.5.3.3. Logo

You can switch the logo on and off using the checkboxes.
Via Browse ... to select the desired logo.
Size (as a percentage of the total area)
Transparency: (100% is invisible)
Scaling [Scale]
Use Scaling [Scale] to control the calculation mode for the logo size.
- Vertical window [Window vertical]
  The logo size is calculated from the window height.
- Horizontal window [Window horizontal]
  The logo size is calculated from the window width.
- Smaller of vertical/horizontal
  The logo size is calculated from the smaller of the window height and width.
- Larger from vertical/horizontal [Larger of vertical/horizontal]
  The logo size is calculated from the larger of the window height and width.
Corner
You can assign the reference point for positioning to a corner or the center point.
Distance type
The selection under Distance type controls the reference size of Distance corner horizontal and Distance corner vertical. This is particularly helpful for logos with a large deviation from height to width.
- Window size
  The vertical distance is calculated using the window height and the horizontal distance using the window width.
- Logo size X and Y
  The vertical distance is calculated using the logo height and the horizontal distance using the logo width.
- Logo size X
  Both the vertical and horizontal spacing are calculated from the logo width.
- Logo size Y
  Both the vertical and horizontal spacing are calculated from the logo height.
Horizontal corner distance [Distance corner horizontal]
Distance corner vertical
