The most important buttons for basic functionality are the Add to link database, Request ERP number and Transfer to CAD [Export to CAD] buttons.

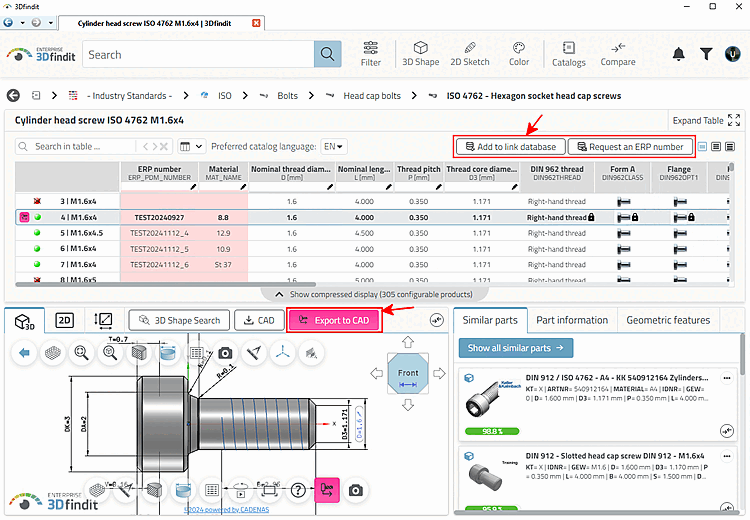

UI with default setting from the example above

For 3Dfindit the visibility is controlled in erpcustom.cfg, in the block [WEB_ACTIONS].

The individual values correspond to other subordinate blocks such as SENDMAIL_ACTION.

The functionality can also be controlled on a role-dependent basis.

Example

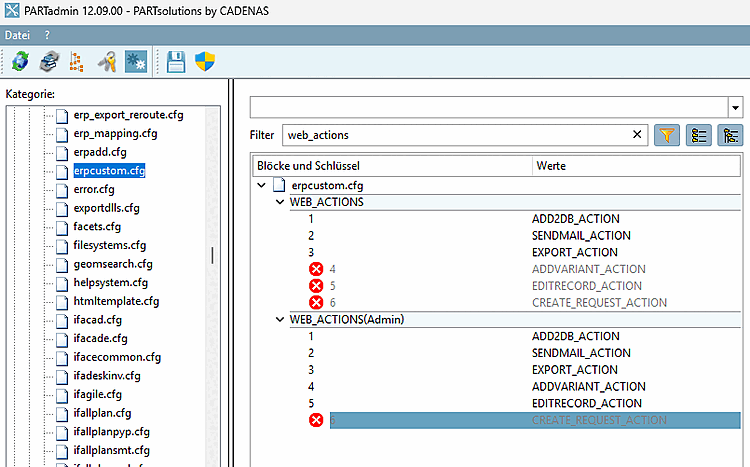

The following figure shows PARTadmin with a block for the basic settings and another one with the admin settings.

PARTadmin > erpcustom.cfg > Block "WEB_ACTIONS"

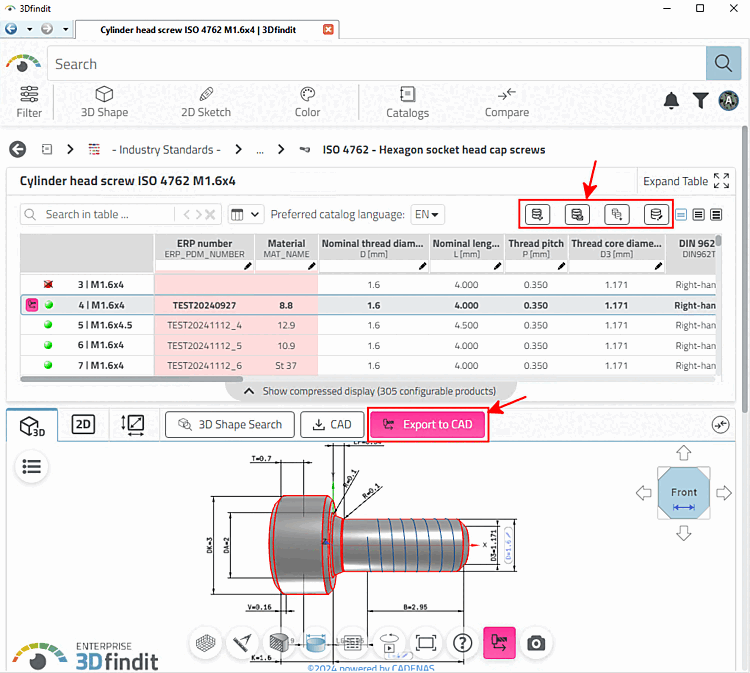

The following illustration shows 3Dfindit with admin functionality. For example, in addition to the basic functionality, the administrator can also create variants or delete or edit individual data records.

UI with admin setting from the example above

The individual functions are explained below.
