1.7.5.8.6.  Block [FeatureGroups]

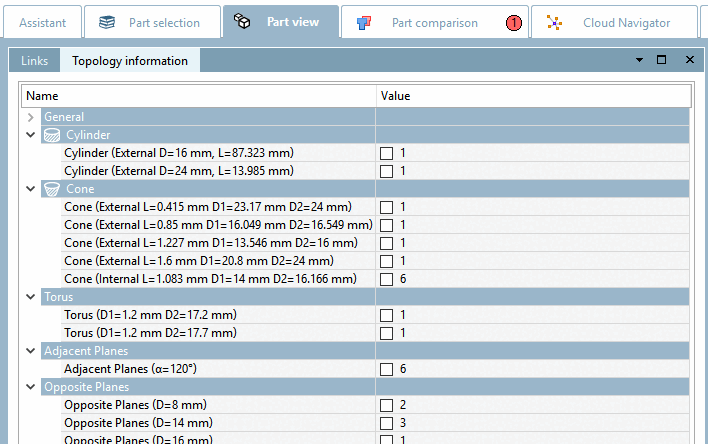

The depiction of the individual Topology features in Part comparison and Part view can be adjusted.

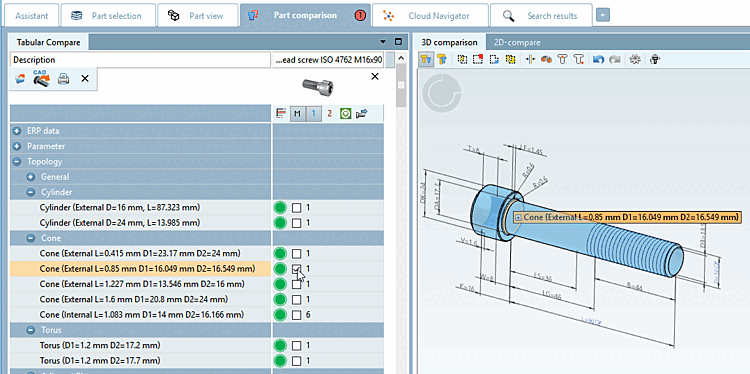

Part comparison -> Topology features

Part comparison -> Topology features

In PARTadmin, geomsearch.cfg, the block FeatureGroups contains the list of depicted features.

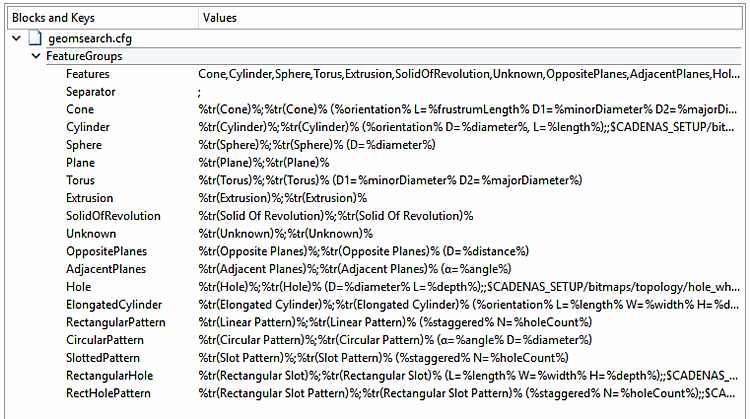

Settings

Settings
