In the 3D view, a grid is displayed by default in cut mode.

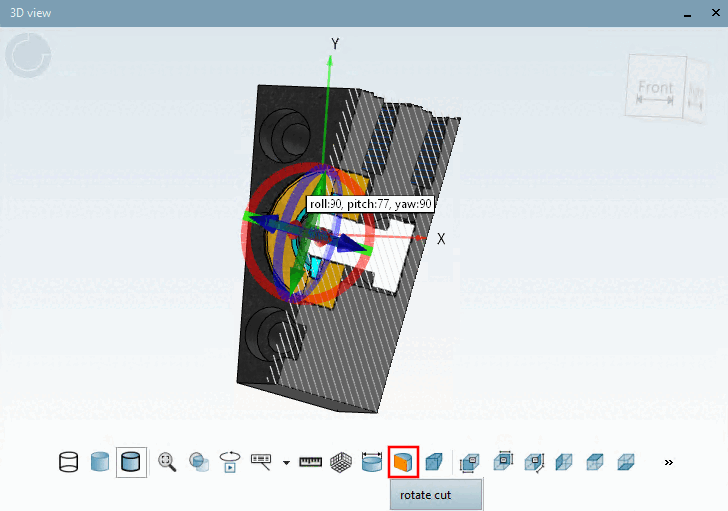

Cross-sectional plane with hatching
In the PARTdesigner settings dialog, you can make specific adjustments .
Hatch Style Layer [Hatching cut plane]: Enabled / Disabled

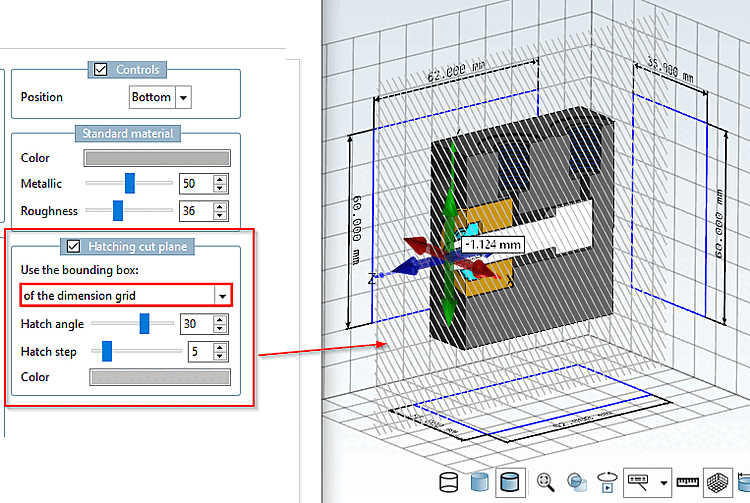

Use a border [Use the bounding box] from
Dimensioning Grid

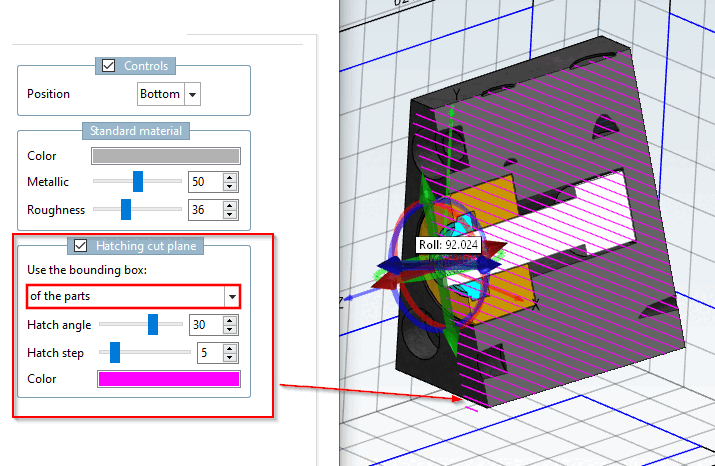

Part
Hatching Angle
Hatching Spacing
Color
