1.3.2. Line settings

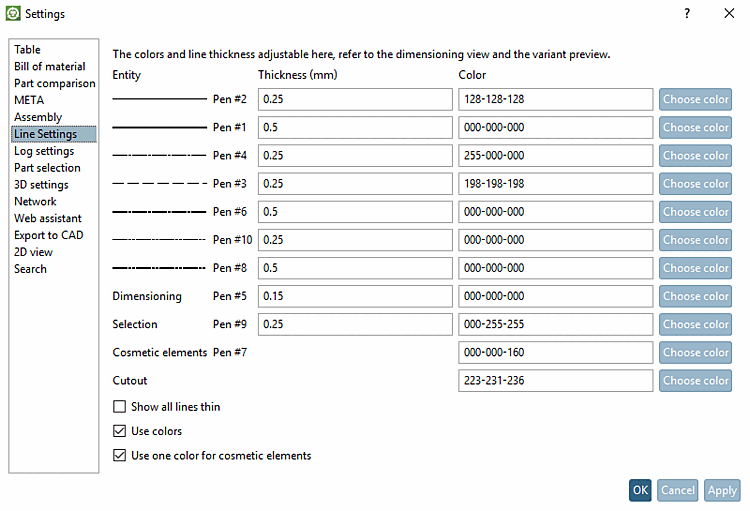

The settings in the Line settings [Line Settings] menu item relate to the dimensioning view and the variant preview.

Dimensioning: Dimensioning text
Selection The color defined here refers exclusively to the component area that you have marked in the 2D preview using the frame (context menu command: "Selection: Mark section [Selection: Mark region]").
Cosmetic elements The colors set here refer exclusively to the cosmetic elements (e.g. threads) of the 2D view.
Punching [Cutout]:
Display all lines thin [Show all lines thin]: Sets thick lines to setting "0.0"
Use colors: If this option is deactivated, all color settings are ignored and replaced by "black".
Display cosmetic elements in a separate color [Use one color for cosmetic elements]: Activates or deactivates the setting for the Cosmetic elements field.
