1.7.4. $CADENAS_DEFAULTUSER and $CADEANS_USER
1.7.4.2.
exportdlls.cfg - Export options
|  |
| Prev | Next |
Export options [Export Options] are saved in the configuration file exportdlls.cfg.
In order to ensure a consistent workflow it may make sense to set default values.
(No adjustments need to be made for the individual user, as their changes are written to the $CADENAS_USER/exportdll.cfg and will be available again the next time they are called up)
![[Note]](images/note.png) | Note |
|---|---|
You normally set defaults under The Here you set default settings under | |
In order to perform desired settings, best proceed as follows:

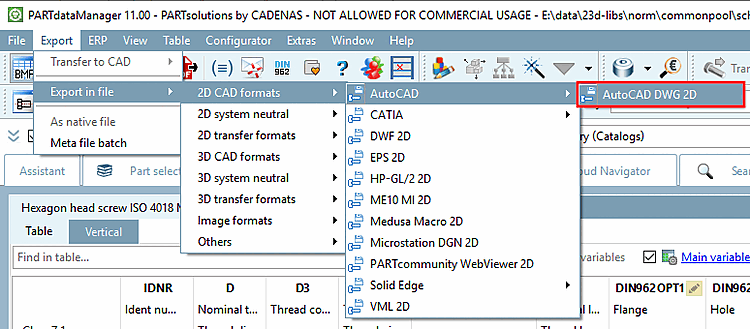

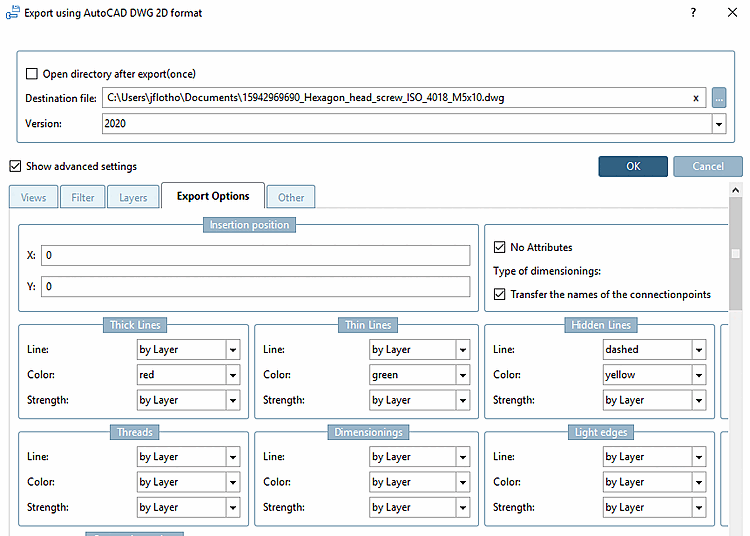

With a sample part, perform an export.
Open the corresponding configuration file $CADENAS_USER/exportdlls.cfg and copy the block [RecentFiles] to the file of the same name under $CADENAS_SITESETUP (or create it), rename the block to [Settings] and delete any keys that are not required, especially those with paths.
[Settings]
DWG2D_OPTPAGEDWGEXPORT_solidColor=VAL{"1"}
DWG2D_OPTPAGEDWGEXPORT_thinColor=VAL{"3"}
DWG2D_OPTPAGEDWGEXPORT_hiddenLinetype=VAL{"dashed"}
DWF2D_OPTPAGEDWGEXPORT_insertPointX=VAL{90}
DWF2D_OPTPAGEDWGEXPORT_insertPointY=VAL{20}
EPS_OPTPAGEEPS_thinWeight=VAL{"0.3"}
CATV4IUA2D_OPTPAGEVECTOR_grouped=VAL{-1}
CATV4IUA2D_OPTPAGEMETA2DV2_Rebase=VAL{0}
DWG3D_OPTPAGEMETA3DV2_draft2sweep=VAL{1}
DXF3D_OPTPAGEMETA3DV2_splitpattern=VAL{1}
BMP_OPTPAGEIMAGE_Width=VAL{100}
BMP_OPTPAGEIMAGE_Height=VAL{100}
...
Settings off $CADENAS_USER/exportdlls.cfg and $CADENAS_SITESETUP/exportdlls.cfg are merged. If there is a conflict, the setting under $CADENAS_USER/exportdlls.cfg.
